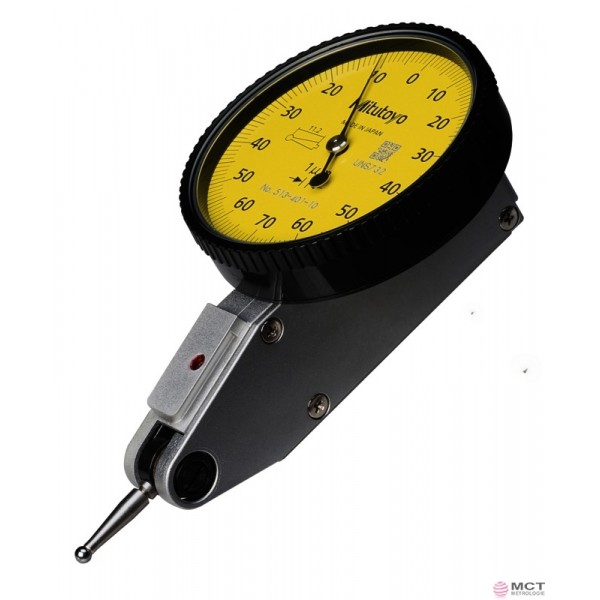

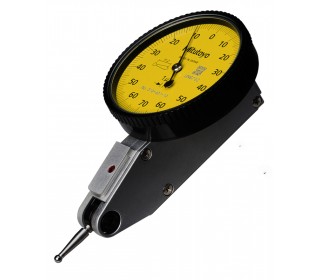

High Resolution Lever Indicator 0.14mm
Please note: non-contractual pictures

High Resolution Lever Indicator 0.14mm

  • Type Lever
  • Dial Type Balanced
  • Range 0.14mm
  • Accuracy ±3µm
  • Graduation 0.001mm
  • Measuring Force 0.3N or less

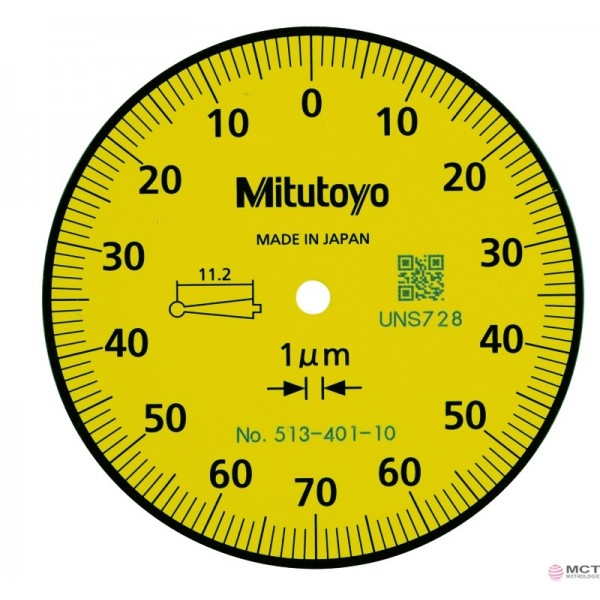

  • Graduation 0-70-0
  • Remarks Anti-magnetic type, Jewelled bearing type



More details

In stock
  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • No-clutch mechanism for automatic reversal of measuring direction.
  • Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.
  • The glare-free flat crystal face has a scratch-resistant coating.
  • High-sensitivity and quick response due to low-friction jewelled bearings.







  • Reference:513-401-10E
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0.14mm
  • Accuracy:±3µm / ±.00015"
  • Display type:Non-digital
  • Resolution:0.001mm
  • Measuring force:≤0.3N

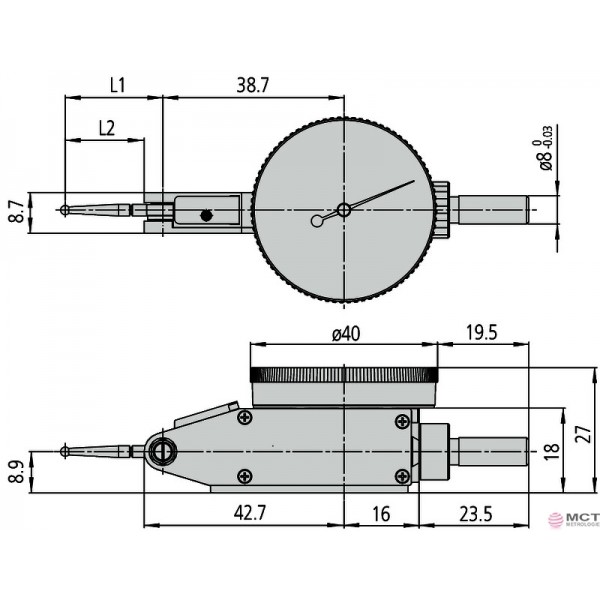

  • Ø Outer Frame:39mm
  • Scale:0-70-0
  • Range / Rev.:0.14mm
  • Contact point length:12.8mm
  • Stylus:Carbide
  • Weight:42g
