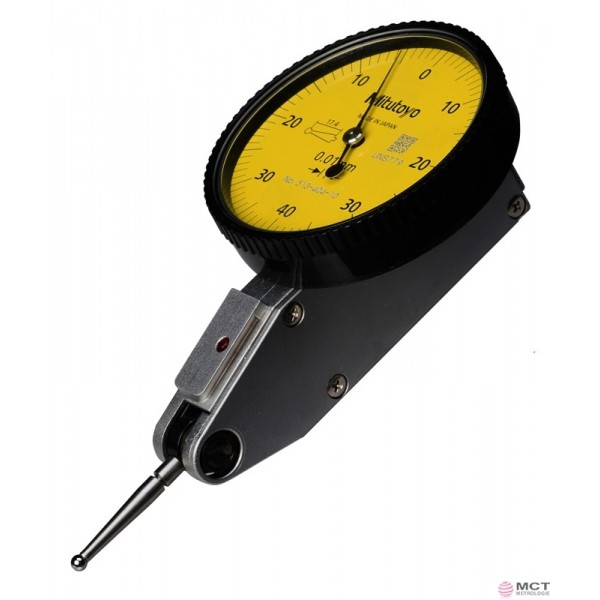

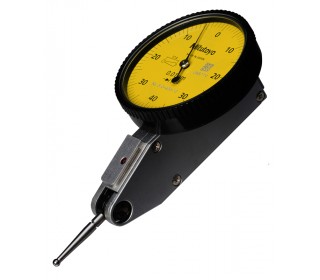

Lever Indicator 0.8mm

Lever Indicator 0.8mm

  • Type Lever
  • Dial Type Balanced
  • Range 0.8mm
  • Accuracy ±8µm
  • Graduation 0.01mm
  • Measuring Force 0.3N or less

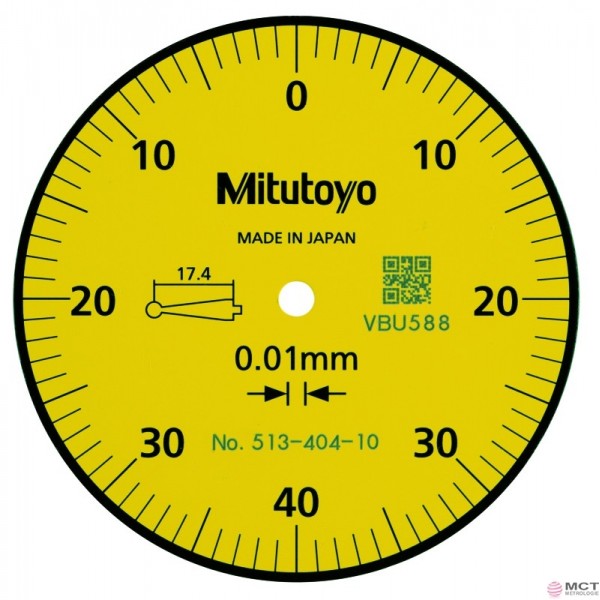

  • Graduation 0-40-0
  • Remarks Anti-magnetic, Jewelled bearing type



More details

84,00 € Ht
100,80 € ttc

513-404-10E

In stock
  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • No-clutch mechanism for automatic reversal of measuring direction.
  • Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.
  • The glare-free flat crystal face has a scratch-resistant coating.
  • High-sensitivity and quick response due to low-friction jewelled bearings.





  • Reference:513-404-10E
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0.8mm
  • Accuracy:±8µm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Measuring force:≤0.3N
  • Ø Outer Frame:39mm
  • Scale:0-40-0
  • Range / Rev.:0.8mm
  • Contact point length:20.9mm
  • Stylus:Carbide
  • Weight:42g
