Data Processing Unit QM-Data 200 + Cable 12AAA807D

Data Processing Unit QM-Data 200 + Cable 12AAA807D

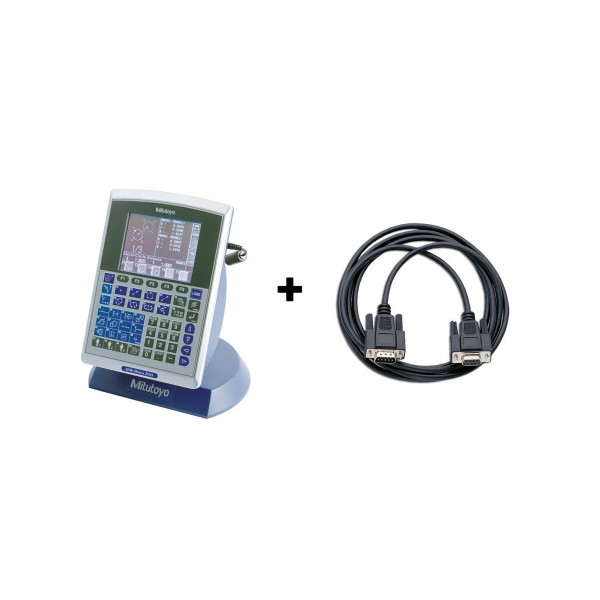

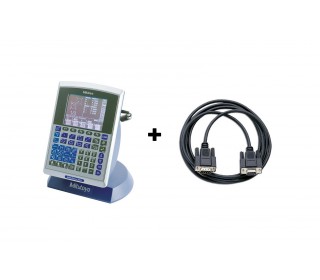

This Pack includes QM-Data 200 with a 2m RS-232C Connexion Cable to link with PJ-A3000 Series

More details

3 107,00 € Ht
3 728,40 € ttc

264-156D+

In stock
  • Resolution 0.0001mm
  • Program function Part program creation, execution, editing
  • Statisical processing Number of data, maximum value, minimum value, mean value, standard deviation, range, histogram
  • Element memory Maximum of 1000 elements
  • Element recall Point, line, circle, distance, ellipse, rectangular hole, slotted hole, intersection and intersecting angle
  • Element key in Point, line, circle
  • Display system Monographic LCD (320 x 240 dots, with LED back light)
  • Measurement result file output RS-232C output (CSV format, MUX-10F format)
  • Display language Japanese/English/German/French/Italian/Spanish/Portuguese/Cheskey/Chinese (simplified/traditonal), Korean
  • Data input RS-232, X/Y/Z axis signal, footswitch
  • Data output RS-232C, Printer, Floppy disk drive unit
  • Power Supply 100V AC to 240V AC
  • Mass 2.9kg





  • Reference:264-156D+
  • Brand:Mitutoyo
  • Measurement Units:Millimeter / Inch
  • Display type:Digital
  • Weight:3100g
