Profile Projector PJ-A3000
Please note: non-contractual pictures

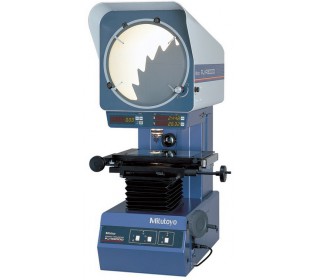

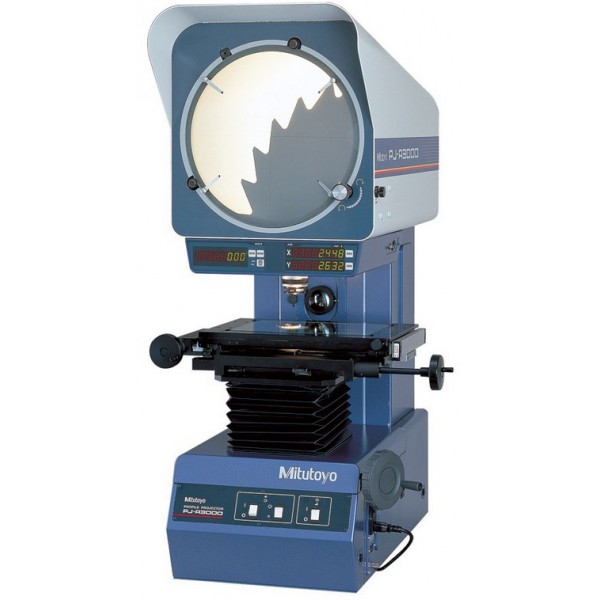

Profile Projector PJ-A3000

  • Benchtop instrument for testing small and medium sized workpieces.
  • Vertical, rotatable crosshair lines screen.
  • Coordinate measuring stage with coarse and fine adjustment.
  • Easy-to-read XY digital display at eye level ensures safe and error-free measurement.
  • Provided with a protractor as a standard, switchable for sexagesimal degree or decimal degree reading. Resolution: 1' or 0.01'.

More details

  • 100x100 mm (302-703-1D)
  • 150x50 mm (302-702-1D)
  • 200x100 mm (302-701-1D)
In stock
  • Resolution 0.001mm / .0001"
  • XY Display Provided
  • Angle display Provided
  • Measuring system Integrated linear scales
  • Stage size 380 x 170mm
  • Max. workpiece height 92.5mm
  • Max. stage loading 10kgf
  • Function ZERO setting +/- direction, RS-232C interface
  • Remarks Accessories Include: 10X projection lens, Measuring stage for PJ010F-200, 3 x halogen lamp (24 V / 150 W), Protective hood, Light shield, Half-silvered mirror for 10 X projective lens, Half silvered mirror for 20X projective lens

100x100 mm : A = 427 mm
150x50 mm   : A = 446 mm
200x100 mm : A = 593 mm

  • Reference:302-70X-1D
  • Brand:Mitutoyo
  • Measurement Units:Millimeter / Inch
  • Measuring system:Integrated linear scales
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Data output:Yes
  • Max. workpiece height: 92.5mm
  • Max. stage loading:10 kg
