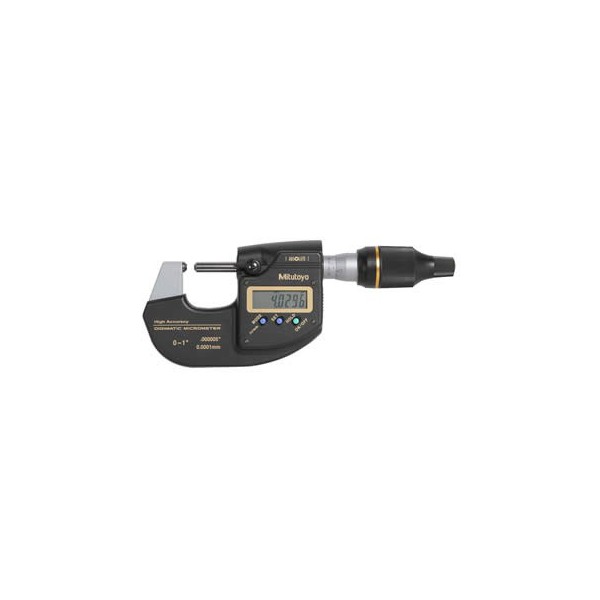

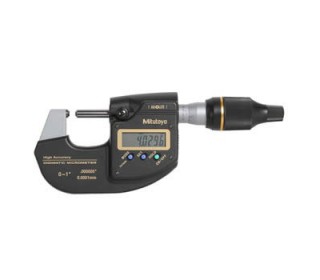

MDH Micrometer High-Accuracy Sub-Micron Digimatic Micrometer

MDH Micrometer High-Accuracy Sub-Micron Digimatic Micrometer

  • Resolution 0.0001mm / 0.0005mm
  • Accuracy ±0.5µm
  • Data Output
  • Electromagnetic induction type ABS rotary sensor
  • Measuring Faces ø3.2mm
  • Measuring Force 7-9mN
  • Mass 400g (440g with heat shield)
  • Battery Lithium / Life: 2 years
  • Functions Zero-set, Resolution Switching, Function Lock, Data Hold, Automatic Power On/Off, Data Output, Low Voltage alarm, Counting Value Composition Error alarm.

More details

In Stock
  • Enabling 0.1μm (5μin) resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a handheld tool.
  • Utilizes Mitutoyo’s innovative 0.1μm (5μin) resolution ABS (absolute) rotary sensor and high-accuracy screw machining technology to reduce the instrumental error to ±0.5μm (±.00002") over the whole range and deliver higher accuracy without sacrificing operability.
  • A highly rigid frame and high performance, constant-force ratchet mechanism enable more stable measurement, while the clicks emitted as the workpiece is being measured assure the operator that measurement is proceeding normally.
  • Body heat transferred to the instrument is reduced by a (removable) heat shield, minimising the error caused by thermal expansion of the frame when performing handheld measurements.
  • The ABS (absolute) rotary sensor eliminates the need to perform origin setting each time the power is turned on, letting you start measuring straight away. With no possibility of overspeed errors, the instrument delivers a higher level of reliability than comparable micrometers.
  • A range of features enable flexible measurement, including switchable resolution (0.0001mm/ 0.0005mm / .000005"/ .00002"), function lock and preset.

  • Reference:293-100-10
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-25 mm / 0-1 "
  • Accuracy:±0.5µm / ±.00002"
  • Resolution:0.0001mm / 0.0005mm / .000005" / .00002"
  • Flatness:0.3µm / .000012"
  • Measuring force: 7-9N
  • Parallelism: 0.6μm/.000024
  • Data output:Yes
  • Power supply: Lithium battery (CR2032) x 1
  • Battery life: Approx. two years when used under normal conditions
  • Weight:400g
