Digimatic Blade Micrometer 0-25 mm
Please note: non-contractual pictures

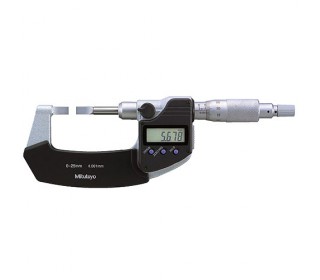

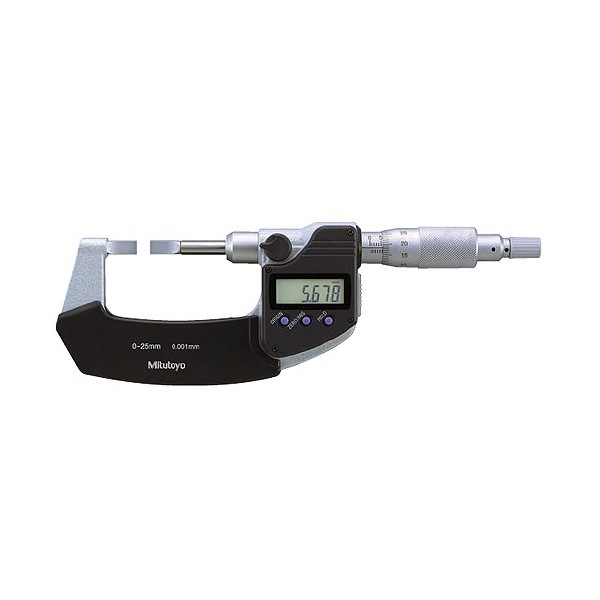

Digimatic Blade Micrometer 0-25 mm

Supplied in fitted plastic box. Key, 1 battery. Type A.



More details

Available

The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas.
With Ratchet Stop for constant force.
Speedy spindle feed of 10mm / .4”/rev. (Quickmike type).
Supplied in fitted plastic case.

  • Reference:422-230-30
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-25 mm / 0-1 "
  • Accuracy:±3µm / ±.00015"
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Measuring force:3-8N
  • Parallelism:3µm /.00015"
  • Data output:Yes
  • Power supply:SR-44
  • Battery life:Approx. 1.2 years under normal use
  • Weight:365g
