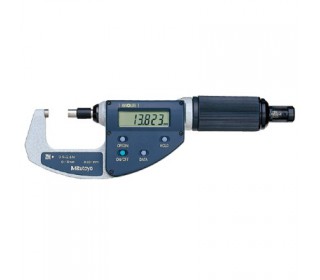

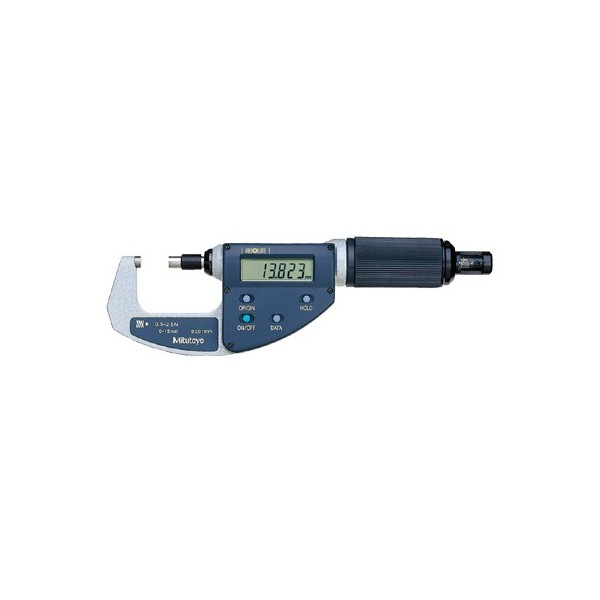

Quick Micromètre Digimatic 0/15mm à pression réglable 2/10N
Please note: non-contractual pictures

Quick Micromètre Digimatic 0/15mm à pression réglable 2/10N

Origin-set, Power ON/OFF, Data hold, Data output, Alarm: Low voltage, Counting value composition error.

More details

227-201

Out of stock

Constant and low measuring force mechanism in the thimble. Adjustable measuring force* accommodates various kind of work materials. *0.5-2.5N or 2-10N The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy. Non-rotating spindle and the new ratchet friction thimble. Speedy spindle feed of 10mm/rev. and .4”/rev for inch/metric model. With absolute linear scale. With SPC data output. With a standard bar to set the origin point (for models with 15 - 30mm / .6” - 1.2” range). Supplied in fitted plastic case.

  • Reference:227-201
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-15mm/0- .6"
  • Accuracy:±2µm / ±.0001"
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Flatness:0.3µm / .000012"
  • Measuring force:0,5; 1,0; 1,5; 2,0; 2,5 N
  • Parallelism:2µm / .00008"
  • Data output:Yes
  • Power supply:SR-44
  • Battery life:Approx. 1.2 years under normal use
  • Weight:300gr
