ABSOLUTE Digimatic Quickmike Micrometer
Please note: non-contractual pictures

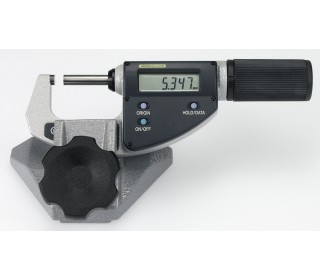

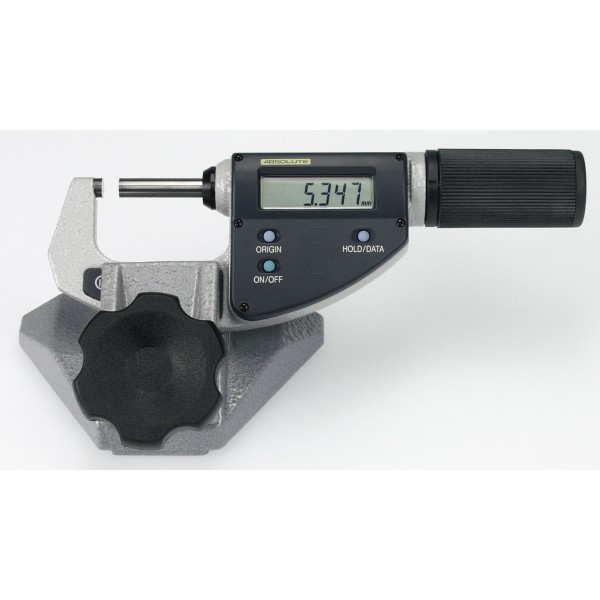

ABSOLUTE Digimatic Quickmike Micrometer

Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error.

More details

In stock

The Quickmike provides a speedy spindle feed of 10mm/.4” per thimble rotation as compared to the conventional micrometer with 0.5mm/.025” per rotation. Its wide 30mm/1.2” measuring range allows various workpieces with different shapes to be measured quickly. Non-rotating spindle and the new ratchet friction thimble. Speedy spindle feed of 10mm/rev. With absolute linear scale. IP54 dust/water protection (when not connected with data output cable). With SPC data output. With a standard bar to set the origin point (for models with a range over 30mm/1.2”). Supplied in fitted plastic case.

  • Reference:293-666
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-30mm / 0-1.2"
  • Accuracy:±2µm / ±.0001"
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Flatness:0.3µm / .000012"
  • Measuring force:5-10N
  • Parallelism:2µm / .00008"
  • Data output:Yes
  • Protection:IP54
  • Power supply:SR-44
  • Battery life:Approx. 1.2 years under normal use
  • Weight:275gr
