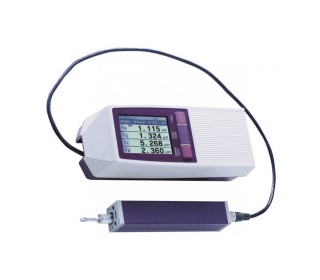

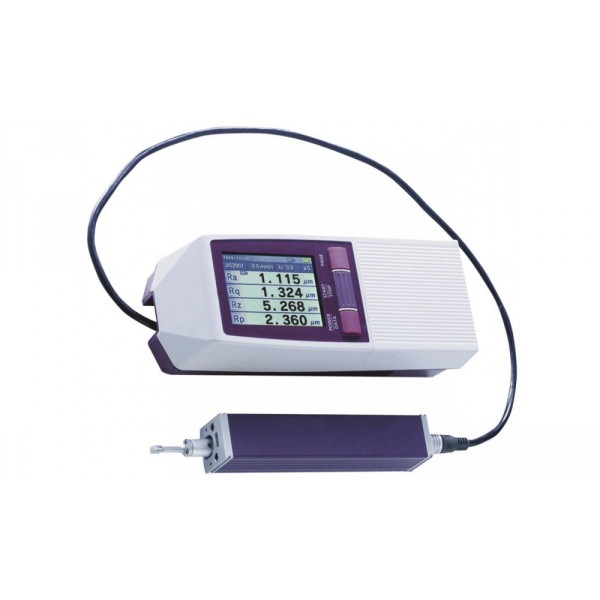

Surftest SJ-210R Portable Surface Roughness Tester

Surftest SJ-210R Portable Surface Roughness Tester

R Type: Before starting the measurement , the system is not in contact with the workpiece. It is only after the start of the measurement, when the advancing movement along the axis is effected, the probe is lowered to the surface of the workpiece. Upon return, the probe rises to the surface of the workpiece forward to return to the starting position of the measurement.

More details

In stock
  • Measuring range: 17.5mm
  • Measuring speed: 0.25, 0.5, 0.75mm/s 1mm/s (Returning)
  • Drive unit: Standard type
  • Detector range: 360µm (-200µm to +160µm)
  • Measuring Force: 4mN
  • Stylus tip radius: 5µm
  • External I/OUSB I/F. Digital output, Printer output, RS-232C I/F, Foot SW I/F
  • Power Supply: Two way power supply: battery (rechargeable Ni-MH battery) and AC adapter
  • Data storage: Memory card
  • Detector Conical taper angle: 60º


Check out the demo video here.

A free copy of Surftest SJ-201P, 210, 301, 310, 401, 402, 411, 412, 500, SV-2100 Communication program is offered, which enables easy use of the communication function to save and print measurement results. Download here

  • Reference:178-562-01D
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Display type:Digital
  • Data output:Yes
  • Power supply: AC adapter/100-240V rechargeable Ni-MH
