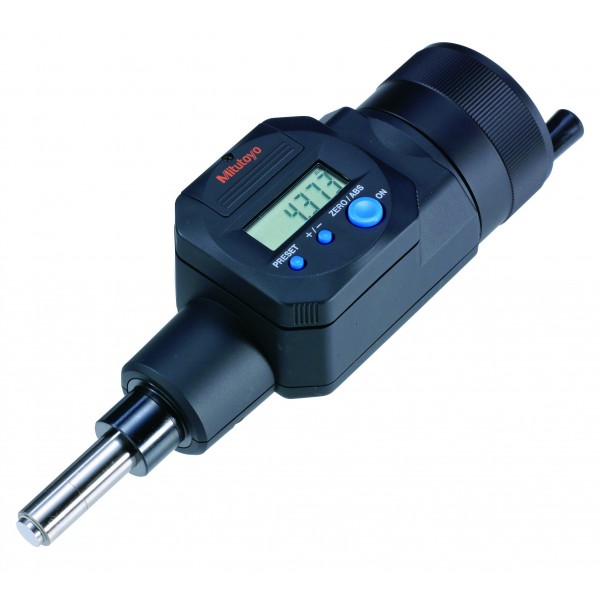

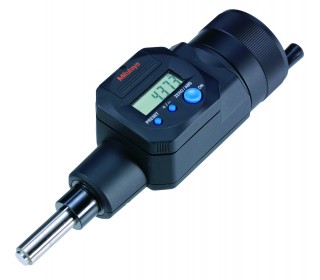

Digimatic Micrometer Head 50 mm
Please note: non-contractual pictures

Digimatic Micrometer Head 50 mm

Accuracy: Refer to the list of specifications. Resolution: 0.001mm or .00005"/0.001mm Display: LCD Battery: SR44 (1 pc./2 pcs.*), 938882 Battery life: 1.8 years Function Zero-setting, Data hold, Data output, Preset, inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error.

More details

In stock

• The display is rotatable to enable easy reading from practically any direction. This feature is especially useful in XY-table applications.
• The Digimatic output port enables inclusion in a statistical process control or networked measurement system.



  • Reference:164-163
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Remark:Non-rotating spindle
  • Range:0-50mm/0-2"
  • Accuracy:±3µm / ±.00015"
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Data output:Yes
  • Power supply:SR-44 x2
  • Battery life: Approx. two years when used under normal conditions
  • Weight:490gr
