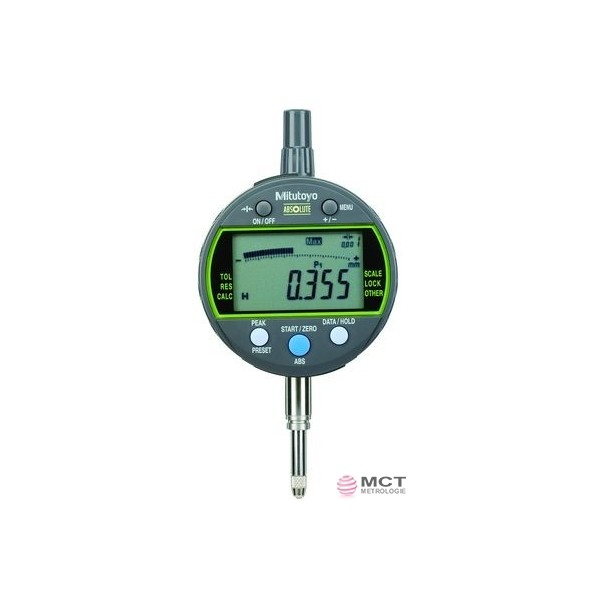

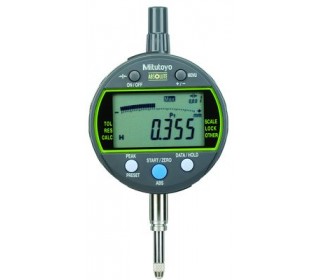

ABSOLUTE Digimatic Peak Value Hold Indicator ID-C 12.7mm
Please note: non-contractual pictures

ABSOLUTE Digimatic Peak Value Hold Indicator ID-C 12.7mm

Functions: Preset, Zeroset, GO/±NG judgement, Max/Min/Runout value holding, Counting direction switching, Power ON/OFF, Data output, inch/mm readout. Alarm: low voltage, Counting value composition error, Overflow error, Tolerance limit setting error.

More details

In stock

- With Plain back.
- The maximum, minimum, or runout value can be displayed during measurement.
- GO/±NG judgement is performed by setting the upper and lower tolerances for max, min and runout values.
- High speed sampling rate of 50 times.



  • Reference:543-300B
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:12.7mm
  • Accuracy:0.003mm
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Measuring force:≤1.5N
  • Data output:Yes
  • Protection:IP42
  • Power supply:SR-44 x2
  • Battery life:approx. 800 - 1300 h
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:60.5mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:160g
