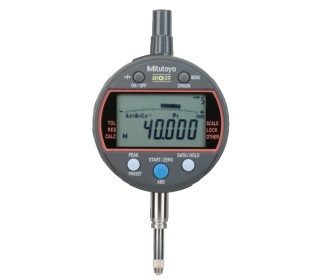

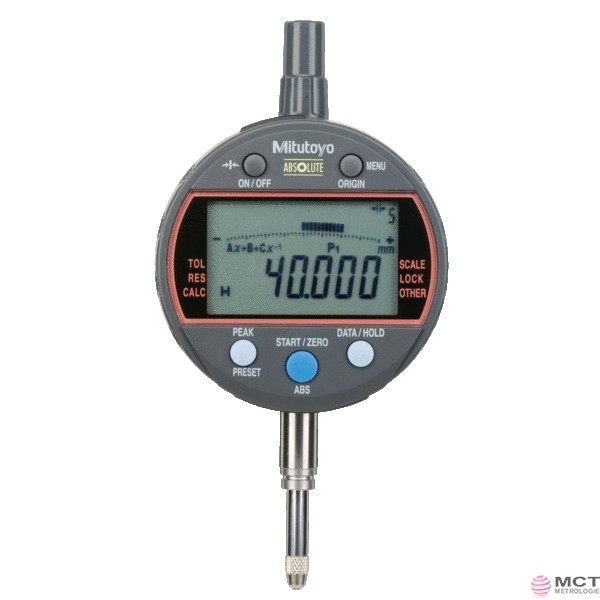

ABSOLUTE Digimatic Calculating Indicator ID-C 12.7mm
Please note: non-contractual pictures

ABSOLUTE Digimatic Calculating Indicator ID-C 12.7mm

Functions : Calculated result, Origin-set/Preset, Zeroset, GO/±NG judgement, Power ON/OFF, Data output, Max/Min value holding, Function lock, Data hold. Alarm: Low voltage, Counting value composition erro.
Resolution 0.0002-1mm. Accuracy ±0.003mm. Battery SR44. Battery Life Approx 12 months. Display LCD character height 6.5mm. Contact Point Carbide point with M2.5x0.45. Stem diameter 8mm.





More details

In stock
  • with Plain back.
  • Calculations are performed using the formula Ax+B+C/x ('x' is plunger displacement) while the specified coefficients A, B and C can be set with respect to the purpose of measurement or dimensions of the fixture. This unique feature enables you to read derived measurements directly, without the bother of conversion tables.





  • Reference:543-340B
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:12.7mm
  • Accuracy:0.003mm
  • Display type:Digital
  • Resolution:0,0002-1mm
  • Measuring force:≤1.5N
  • Data output:Yes
  • Protection:IP42
  • Power supply:SR-44
  • Battery life:approx. 10 000h
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:60.5mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:160g
