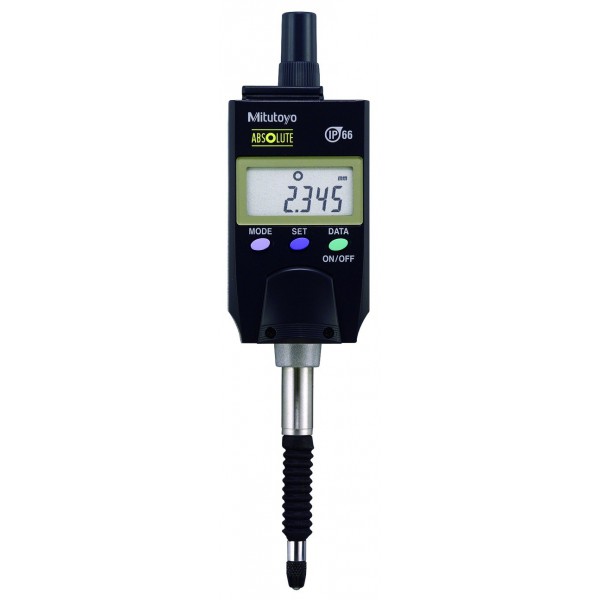

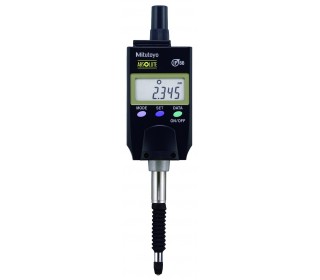

ABSOLUTE Digimatic Slim Body Indicator ID-N 12.7mm
Please note: non-contractual pictures

ABSOLUTE Digimatic Slim Body Indicator ID-N 12.7mm

Functions: Zero-setting, Presetting, Direction switching, Tolerance judgement, Display hold, Data output, Inch/mm readout. Alarm: Low voltage, Counting value composition error, Overflow error, Tolerance limit setting error.
Resolution 0.01mm / 0.001mm, Accuracy ±0.01mm / 0.003mm, Display LCD character height 6.2mm, Contact Point Carbide point with M2.5x0.45, Measuring Force 2.5N.




More details

In stock

- Proven ABSOLUTE sensor.
- Rated to IP66 water and dust proofing standard and oil resistance improved.
- Slim body design is advantageous for multi-point measurements.
- Improvement in workability with the LCD readout rotation function.
- Built in tolerance judgement function.
- Switchable resolution.
- Waterproof data output connector.
- Built in hold/preset function.



  • Reference:543-575
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:12.7mm
  • Accuracy:0.003/0.01 mm
  • Display type:Digital
  • Resolution:0.001/0.01 mm
  • Measuring force:2.5N
  • Data output:Yes
  • Protection:IP66
  • Power supply:SR-44
  • Battery life:approx. 7 000h
  • Acceptable stem sizes:Ø8 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:130g
