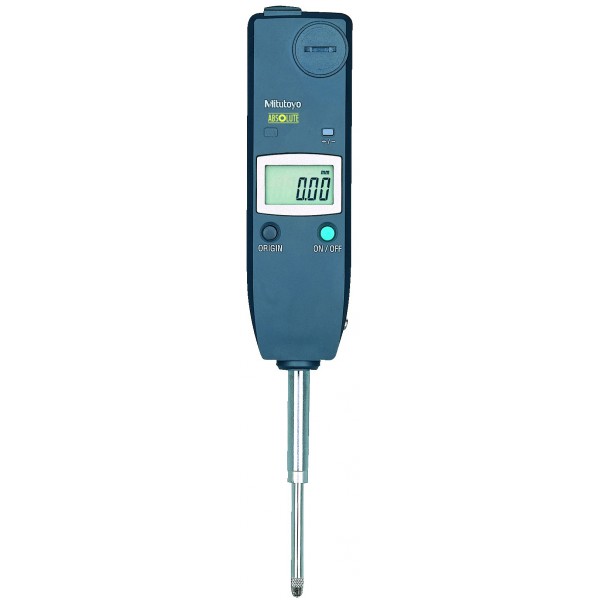

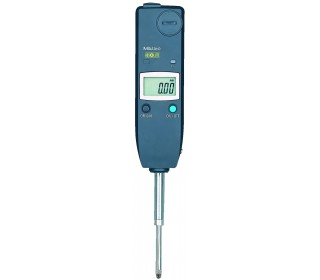

ABSOLUTE Digimatic Slim Body Indicator ID-U 25.4mm
Please note: non-contractual pictures

ABSOLUTE Digimatic Slim Body Indicator ID-U 25.4mm

Functions Origin-set, (Zeroset), Counting direction switching, Power ON/OFF, Data output, Alarm: low voltage, Counting value composition error. Resolution 0.01mm. Accuracy ±0.02mm. Battery SR44. Battery Life Approx 20,000 hours. Display LCD character height 8.5mm. Contact Point Carbide point with M2.5x0.45. Stem diameter 8mm. Scale type Absolute electrostatic linear encoder.



More details

204,00 € Ht
244,80 € ttc

575-121

In stock
  • With flatback.
  • Slim type digital indicator with a low price.
  • Large LCD and simple key operation.
  • The ID-U displays the absolute position of the spindle from the origin point at power-on.
  • Zero-setting is performed with the ORIGIN button, and this setting does not have to be repeated for the entire life of the battery, even after power-off.
  • Ideal for installation into measuring devices because of its compact design and long battery life.
  • The ABSOLUTE Encoder eliminates spindle over-speed error and prevents electrical noise interference errors.





  • Reference:575-121
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:25.4mm
  • Accuracy:0,02mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Measuring force:≤1.8N
  • Data output:Yes
  • Protection:IP42
  • Power supply:SR-44
  • Battery life:approx. 20.000 hours
  • Acceptable stem sizes:Ø8 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:140g
