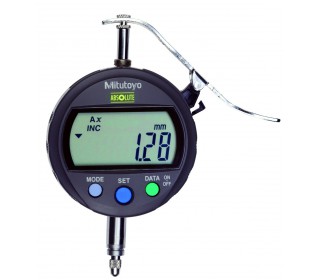

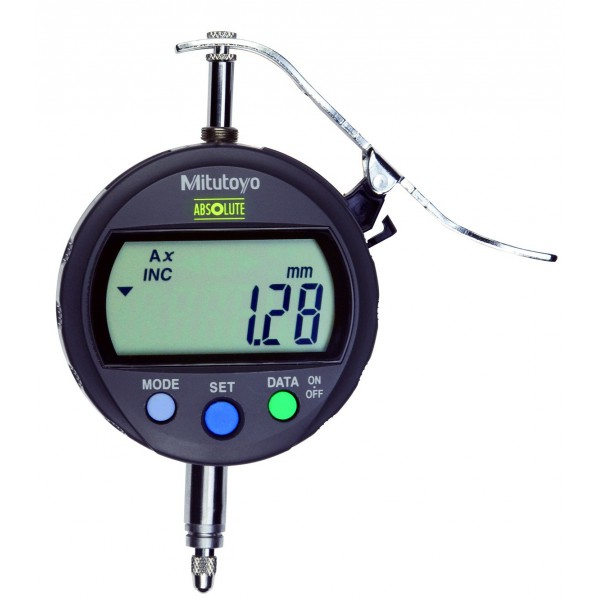

ABSOLUTE Digimatic Indicator ID-C 12.7mm

ABSOLUTE Digimatic Indicator ID-C 12.7mm

Functions: Origin-set/Preset, Zeroset, GO/±NG judgement, Counting direction switching, Power ON/OFF, Simplified calculation, Function lock, Data hold, inch/mm readout. Alarm: low voltage, Counting value composition error, Overflow error, Tolerance limit, setting error.
Resolution
0.01mm, Accuracy ±0.02mm, Contact Point Carbide point with M2.5x0.45, Stem diameter 8mm. Measuring Force ≤ 0.9N





More details

In stock
  • With Plain back.
  • As compact as standard Series 2 dial indicators.
  • Large, easy to read LCD.
  • SET key: Allows the display to be Zero-measurements. This switch will also allow return to the absolute coordinate and display of the true position from the origin point.
  • GO/±NG judgement can be performed by setting upper and lower tolerance limits. The judgement result (GO/±NG) can be displayed in full size characters.
  • Simple calculation by a user definable factor using the formula Ax ('x' is spindle displacement) can be performed.
  • The measuring direction can be reversed.
  • Unlimited response speed eliminates spindle over-speed errors.
  • The indicator face can be rotated 330° to an appropiate angle for easy reading.





  • Reference:543-400B
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:12.7mm
  • Accuracy:0,02mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Measuring force:≤0.9N
  • Data output:Yes
  • Protection:IP42
  • Power supply:SR-44
  • Battery life:approx. 5.000 hours
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:59mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:170g
