ABSOLUTE Digimatic Economical Indicator ID-S 12.7mm
Please note: non-contractual pictures

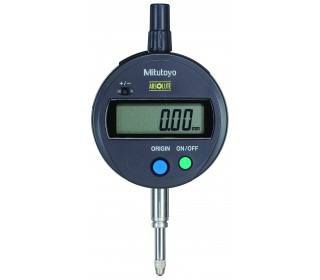

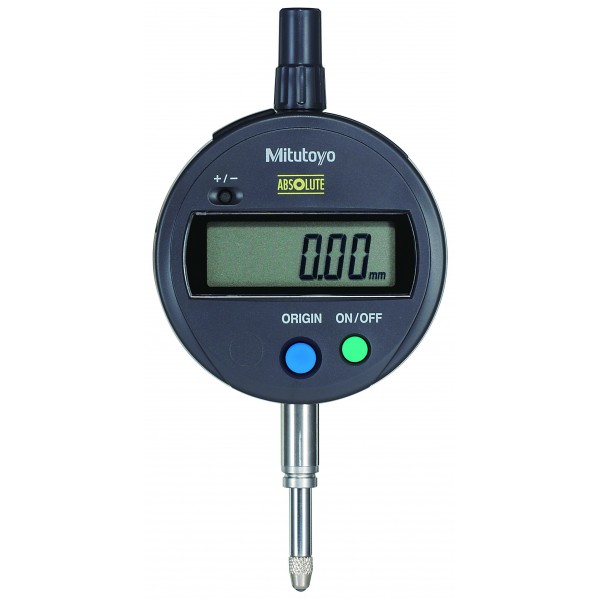

ABSOLUTE Digimatic Economical Indicator ID-S 12.7mm

Functions Origin-set, (Zeroset), Counting direction switching, Power ON/OFF, Data output, Alarm: low voltage, Counting value composition error. Resolution 0.01mm. Accuracy ±0.02mm. Battery SR44. Battery Life Approx 20,000 hours. Display LCD character height 9mm. Contact Point Carbide point with M2.5x0.45. Stem diameter 8mm. Scale type Absolute electrostatic linear encoder.

More details

In stock
  •  As compact as standard Series 2 dial indicators.
  • The ID-S indicates the absolute position of the spindle from the origin point at power-on, allowing measurement to start immediately.
  • Zero-setting is performed with the ORIGIN button, and this setting does not have to be repeated during the entire life of the battery, even after power-off.
  • Measurement error due to spindle overspeed is eliminated with the ABSOLUTE encoder.





  • Reference:543-781B
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:12.7mm
  • Accuracy:0,02mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Measuring force:≤1.5N
  • Data output:Yes
  • Protection:IP42
  • Power supply:SR-44
  • Battery life:approx. 20.000 hours
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:59mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:140g
