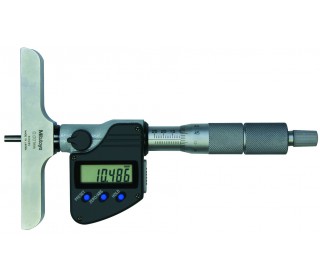

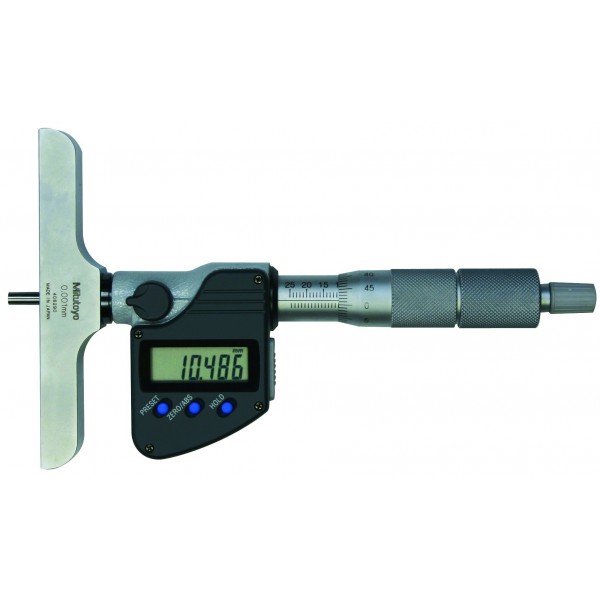

Digital Depth Micrometer 0-150mm with interchangeable rod type
Please note: non-contractual pictures

Digital Depth Micrometer 0-150mm with interchangeable rod type

Ø4mm interchangeable rods, with lapped measuring end, provide a wide measuring range. The rod length can be adjusted in 25mm or 1in increments. With ratchet stop for constant force. With measuring rod clamp. With SPC output. With digit counter. Supplied in fitted plastic case. With 6 interchangeable rods.

More details

In stock

A digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 100mm base is made from tool steel, hardened and ground with a micro-lapped reference surface. A ratchet stop guarantees repeatable measurement. Digimatic data output.

  • Reference:329-250-30
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-150mm / 0-6"
  • Accuracy:±4µm / ±.0002"
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Measuring force:5-10N
  • Data output:Yes
  • Power supply:SR-44
  • Battery life:Approx. 1.2 years under normal use
  • Weight:540g
