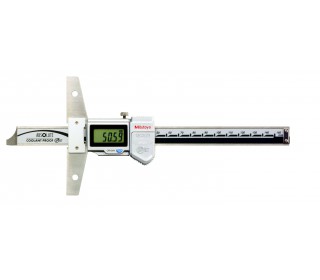

Coolant Proof ABSOLUTE Digimatic 0-300 mm
Please note: non-contractual pictures

Coolant Proof ABSOLUTE Digimatic 0-300 mm

• Enables stable depth measurement with a resolution of 0.01 mm.
• Features Mitutoyo's ABSOLUTE system. No need to reset the origin after switching on.
• Optional longer extension bases are available (except for models with measuring ranges of 600, 750, 1000 mm).
• Data output function allows integration into statistical process control and measurement systems.

More details

In stock

Technical Data :
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm
Display: LCD Length standard: ABSOLUTE electrostatic capacitance (electromagnetic induction)* type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 5,000 hours under normal use
Dust/Water protection level: IP67

Function :
Origin-set, Automatic power on/off, Data output, inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error.

  • Reference:571-253-10
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Remark:ORIGIN (ABS)
  • Range:0-300mm / 0-12"
  • Accuracy:±0,03mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Repeatability:0,01 mm
  • Data output:Yes
  • Protection:IP67
  • Power supply:SR-44
  • Battery life:approx. 5.000 hours
  • Length:404 mm
  • Base:100 x 6 mm
  • Weight:357g
