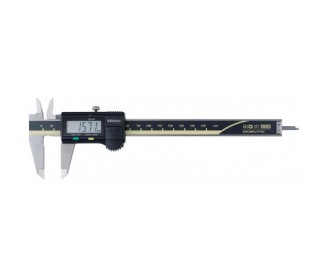

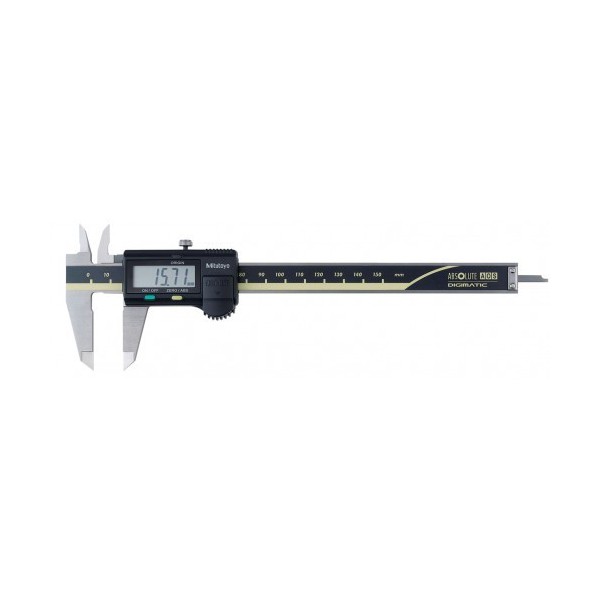

ABSOLUTE AOS Digimatic Caliper 0-150 mm

ABSOLUTE AOS Digimatic Caliper 0-150 mm

- Resolution 0.01mm
- Accuracy
±0.02mm
- Scale type
AOS Electromagnetic induction type ABS encoder
- Repeatability
0.01mm
- Fine adjustment
with thumb roller
- Depth bar
Blade
- Display
LCD
- Max. response speed
Unlimited
- Battery
SR44
- Battery Life
Approx 3.5 years under normal use
- Functions
Origin-set, Zero-set, Automatic, Low Voltage alarm, Counting Value Composition Error alarm.





More details

In stock
The patented Advanced Onsite Sensor (AOS) offers improved measurement dependability by increasing resistance to harsh workshop conditions. - See more at: http://ecatalog.mitutoyo.com/ABSOLUTE-Digimatic-Caliper-Series-500-with-Exclusive-ABSOLUTE-Encode-Technology-C1381.aspx#sthash.qdFxgC71.dpuf

• The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point).
• Large and clear LCD readout.
• Smooth slider movement makes for comfortable operation.
• 20,000 hours battery life.
• Can measure outside and inside dimensions, depth, and steps.





The patented Advanced Onsite Sensor (AOS) offers improved measurement dependability by increasing resistance to harsh workshop conditions. - See more at: http://ecatalog.mitutoyo.com/ABSOLUTE-Digimatic-Caliper-Series-500-with-Exclusive-ABSOLUTE-Encode-Technology-C1381.aspx#sthash.qdFxgC71
  • Reference:500-181-30
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Remark:Without Fine-adjustment thumbwheel
  • Range:0-150mm / 0-6"
  • Accuracy:±0,02mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Data output:No
  • Power supply:SR-44
  • Battery life:approx. 20.000 hours
  • Depth Bar:Blade
  • Weight:164g
