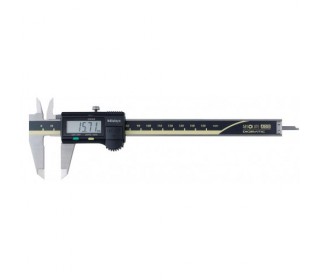

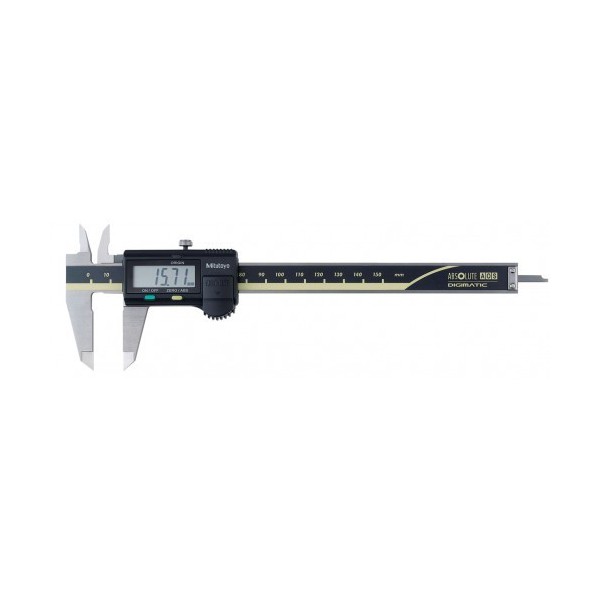

ABSOLUTE AOS Digimatic Caliper 0-150 mm / 0-6" with Data Output
Please note: non-contractual pictures

ABSOLUTE AOS Digimatic Caliper 0-150 mm / 0-6" with Data Output

INCH/MM Model
- Resolution 0.01mm
- Accuracy ±0.02mm
- Scale type AOS Electromagnetic induction type ABS encoder
- Repeatability 0.01mm
- Fine adjustment with thumb roller
- Depth bar Blade
- Display LCD
- Max. response speed Unlimited
- Battery SR44
- Battery Life Approx 3.5 years under normal use
- Functions Origin-set, Zero-set, Automatic, Low Voltage alarm, Counting Value Composition Error alarm.



More details

In stock
The patented Advanced Onsite Sensor (AOS) offers improved measurement dependability by increasing resistance to harsh workshop conditions. - See more at: http://ecatalog.mitutoyo.com/ABSOLUTE-Digimatic-Caliper-Series-500-with-Exclusive-ABSOLUTE-Encode-Technology-C1381.aspx#sthash.qdFxgC71.dpuf

• The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point).
• Large and clear LCD readout.
• Smooth slider movement makes for comfortable operation.
• 20,000 hours battery life.
• Can measure outside and inside dimensions, depth, and steps.





The patented Advanced Onsite Sensor (AOS) offers improved measurement dependability by increasing resistance to harsh workshop conditions. - See more at: http://ecatalog.mitutoyo.com/ABSOLUTE-Digimatic-Caliper-Series-500-with-Exclusive-ABSOLUTE-Encode-Technology-C1381.aspx#sthash.qdFxgC71
  • Reference:500-171-30
  • Brand:Mitutoyo
  • Measurement Units:Millimeter / Inch
  • Remark:Without Fine-adjustment thumbwheel
  • Range:0-150mm / 0-6"
  • Accuracy:±0,02mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Data output:Yes
  • Power supply:SR-44
  • Battery life:approx. 20.000 hours
  • Depth Bar:Blade
  • Weight:164g
