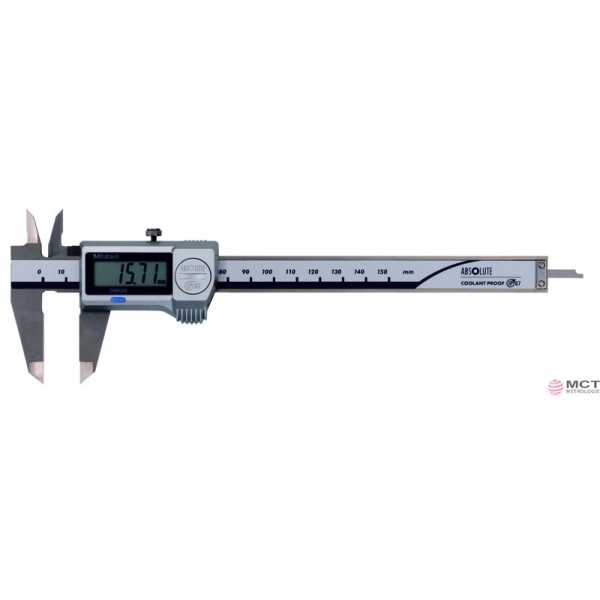

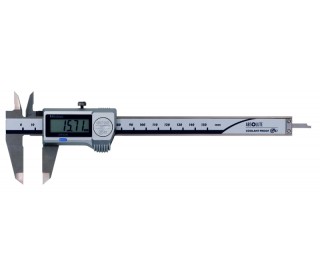

ABSOLUTE Digimatic Coolant Proof Caliper 0-200 mm with data output
Please note: non-contractual pictures

ABSOLUTE Digimatic Coolant Proof Caliper 0-200 mm with data output

  • Resolution 0.01mm
  • Accuracy ±0.02mm
  • Protection IP67
  • Data Output (Digimatic)
  • Scale type Absolute electromagnetic linear encoder
  • Repeatability 0.01mm
  • Depth bar Blade
  • Display LCD
  • Max. response speed Unlimited
  • Battery SR44
  • Battery Life Approx. 3 years under normal use
  • Functions Origin-set, Zero-set, Automatic Power On/Off, Low Voltage alarm, Counting Value Composition Error alarm.

More details

In stock
  • Can be used in workshop conditions exposed to coolant, water, dust or oil.
  • Easy to use - no need to wipe or clean the scale.
  • Advanced design styling.
  • Incorporates Mitutoyo's ABSOLUTE measurement system.
  • Automatic power-on/off.





  • Reference:500-717-20
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-200mm/0-8"
  • Accuracy:±0,02mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Data output:Yes
  • Protection:IP67
  • Power supply:SR-44
  • Battery life:approx. 15.000 hours
  • Depth Bar:Blade
  • Weight:194g
