Digimatic Micrometer 0/25mm
Please note: non-contractual pictures

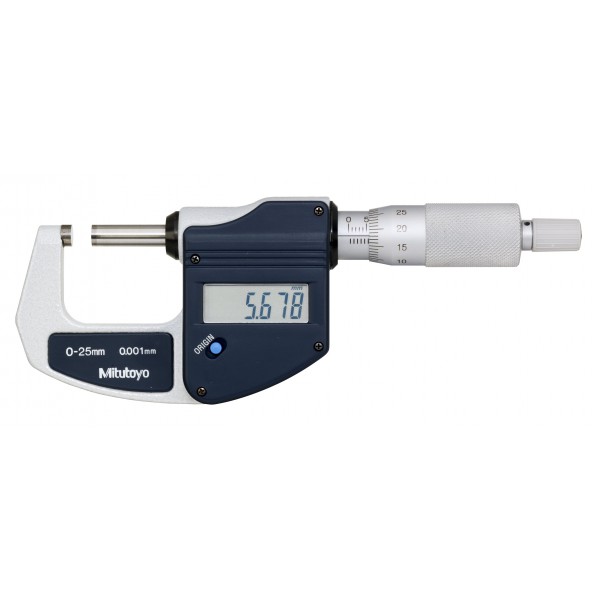

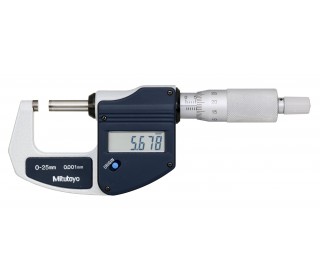

Digimatic Micrometer 0/25mm

  • Resolution 0.001mm
  • Accuracy ±2µm
  • Display LCD
  • Flatness 0.3µm
  • Measuring Faces Carbide
  • Parallelism 2µm / .00008"
  • Battery SR44
  • Battery Life Approx. 1.2 years under normal use
  • Function Origin-set, Automatic power on/off, Alarm: Low voltage, Counting value composition error
  • Including box, key, 1 battery.
  • Old reference: 293-821

More details

In Stock

Provided only with a zero-set key for easy origin setting. A ratchet stop or friction thimble for a constant measuring force. Measurement readout with large characters on the LCD screen. No spindle clamp. No data output Supplied in fitted plastic case.



  • Reference:293-821-30
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-25 mm / 0-1 "
  • Accuracy:±2µm / ±.0001"
  • Display type:Digital
  • Resolution: 0.001mm / .00005"
  • Flatness:0.3µm / .000012"
  • Measuring force:5-10N
  • Parallelism:2µm / .00008"
  • Data output:No
  • Power supply:SR-44
  • Battery life:Approx. 1.2 years under normal use
  • Weight:275gr
