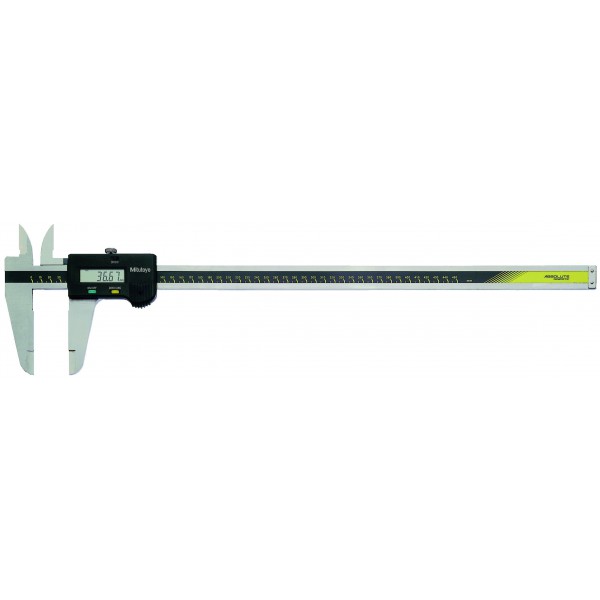

ABSOLUTE Digimatic Caliper 0-600 mm
Please note: non-contractual pictures

ABSOLUTE Digimatic Caliper 0-600 mm

  • Resolution 0.01mm / .0005"
  • Accuracy ±0.05mm / ±.002"
  • Scale type Absolute electromagnetic linear encoder
  • Repeatability 0.01mm
  • Display LCD
  • Data Output Yes
  • Max. response speed Unlimited
  • Battery SR44
  • Battery Life Approx 3.5 years under normal use
  • Functions Origin-set, Zero-set, Automatic, Data Output, Low Voltage alarm, Counting Value Composition Error alarm.

More details

500-501-10

Out of stock
  • Large and clear LCD readout.
  • The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This switch will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jawsclosed point).





  • Reference:500-501-10
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-600mm / 0-24"
  • Accuracy:±0.05mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Data output:Yes
  • Power supply:SR-44
  • Battery life:approx. 20.000 hours
  • Weight:1350g
