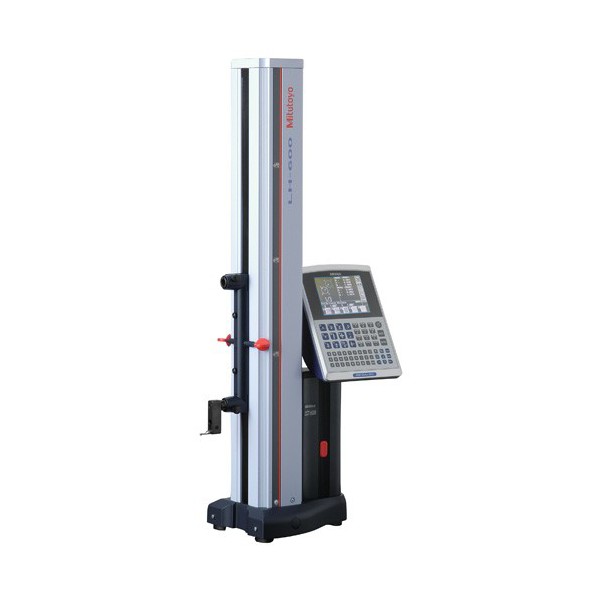

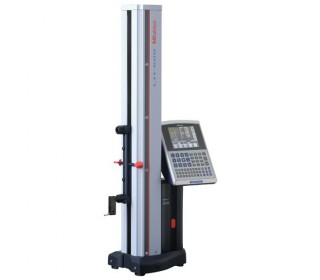

Linear Height High Performance Height Gauge LH-600E 0-600mm
Please note: non-contractual pictures

Linear Height High Performance Height Gauge LH-600E 0-600mm

  • Range 0-600mm
  • Accuracy ±1.6µm
  • Resolution 0.0001 / 0.001 / 0.01 / 0.1mm
  • Balancing Method Counter balance
  • Floating Method Full / semi-floating with built-in air compressor
  • Repeatability 0.4µm
  • Straightness 4µm
  • Slider Stroke 600mm
  • Display Graphic LCD with back light
  • Battery Life Approx 5 hours
  • Data Output Yes
  • Measuring Force 1N
  • Power Supply AC adapter/100-240V rechargeable Ni-MH



More details

In stock
  • Highly versatile multi-function type.
  • Carbide-tipped long scriber is provided.
  • Rigid construction ensures repeatable measurement.
  • Inclined handle improves slider ergonomics.
  • Two-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width, and outside width.
  • SPC data output.





  • Reference:518-351D-21
  • Brand:Mitutoyo
  • Measurement Units:Millimeter / Inch
  • Range:0-972 mm (600 mm)
  • Accuracy:(1,1 + 0,61/600) μm, (L : Measuring length in mm)
  • Display type:Digital
  • Resolution:0,0001/0,001/0,01/0,1 mm
  • Repeatability:Plane : 0,4 μm (2σ), Bore : 0,9 μm (2σ)
  • Measuring force:1 N or 100 gf
  • Data output:Yes
  • Power supply: AC adapter/100-240V rechargeable Ni-MH
  • Battery life:Approx 5 hours
  • Squareness:5µm
  • Weight:25 kg
