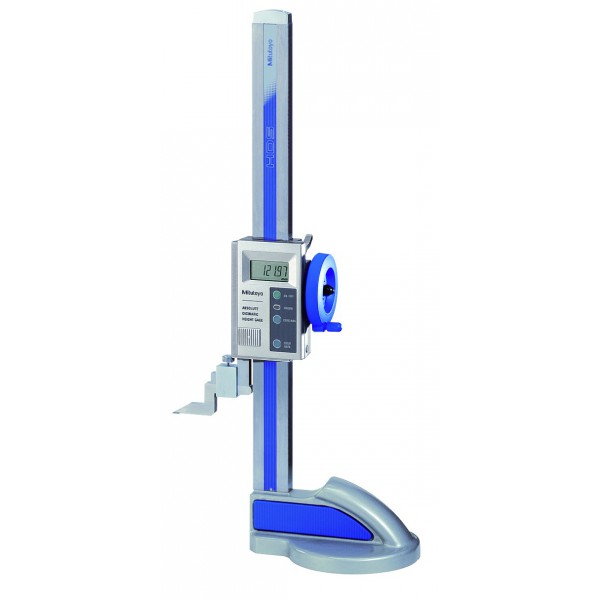

ABSOLUTE Digimatic Height Gauge 0-300mm / 0-12"

ABSOLUTE Digimatic Height Gauge 0-300mm / 0-12"

Functions: Origin setting, ABS/INC switching, Power ON/OFF, Data hold, Data output, Alarm: Low voltage, Counting value composition error.



More details

570-302

Contact Us
  • Built in ABSOLUTE linear encoderThis encoder eliminates the necessity of setting the reference point at every power-on. It has improved reliability because no over-speed error will occur.
  • Rigid column structure ensures high measuring accuracy.
  • With large smooth slider feed wheel.
  • Carbide-tipped scriber is provided.
  • With SPC data output.



  • Reference:570-302
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-300mm / 0-12"
  • Accuracy:±0,03mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Data output:Yes
  • Power supply:SR-44
  • Battery life:approx. 20.000 hours
  • Weight:4600g
