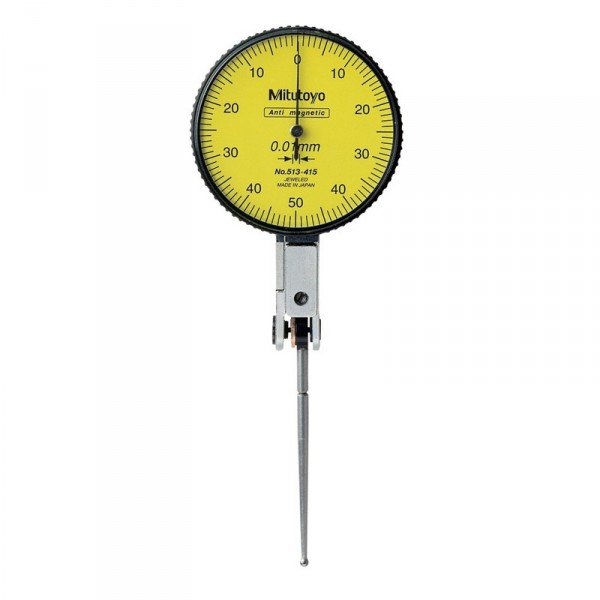

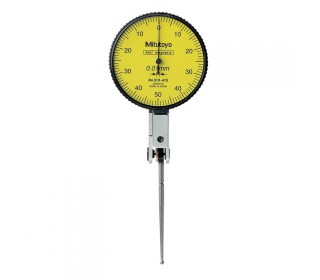

Long Stylus Lever Indicator 1mm

Long Stylus Lever Indicator 1mm

  • Type Lever
  • Dial Type Balanced
  • Range 1mm
  • Accuracy ±10µm
  • Graduation 0.01mm
  • Measuring Force 0.2N or less
  • Graduation 0-50-0
  • Remarks Anti-magnetic, Jewelled bearing type



More details

513-415-10E

Out of stock
  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • No-clutch mechanism for automatic reversal of measuring direction.
  • Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.
  • The glare-free flat crystal face has a scratch-resistant coating.
  • High-sensitivity and quick response due to low-friction jewelled bearings.





  • Reference:513-415-10E
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:1mm
  • Accuracy:±10µm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Ø Outer Frame:39mm
  • Scale:0-50-0
  • Range / Rev.:1 mm
  • Contact point length:44.5mm
  • Stylus:Carbide
  • Weight:42g
