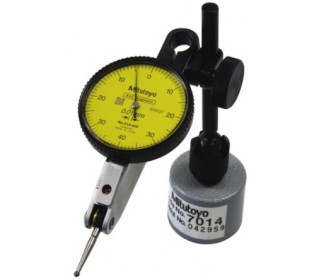

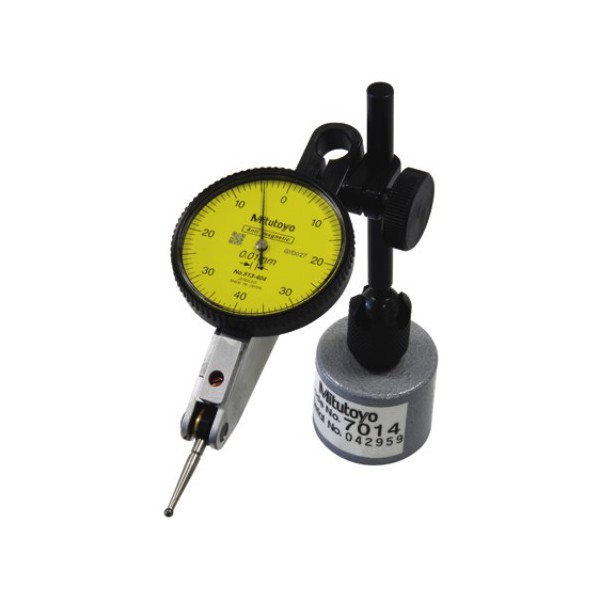

Set  : Lever Indicator 0.8mm with Mini Magnetic Stand

Set : Lever Indicator 0.8mm with Mini Magnetic Stand

Including 513-404E indicator and 7014 Mini Magnetic Stand.

513-404E Features:
- Type
Lever
- Dial Type
Balanced
- Range
0.8mm
- Accuracy
±8µm
- Graduation
0.01mm
- Measuring Force
0.3N or less
- Graduation
0-40-0
- Remarks
Anti-magnetic, Jewelled bearing type

More details

In stock
  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • No-clutch mechanism for automatic reversal of measuring direction.
  • Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.
  • The glare-free flat crystal face has a scratch-resistant coating.
  • High-sensitivity and quick response due to low-friction jewelled bearings.





  • Reference:513-908-10E
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0.8mm
  • Accuracy:±8µm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Measuring force:≤0.3N
  • Anvil dimensions:Ø30 mm
  • Magnetic force:150N
  • Acceptable stem sizes:Ø6, Ø8
  • Action radius (mm):68
  • Ø Outer Frame:39mm
  • Scale:0-40-0
  • Range / Rev.:0.8mm
  • Contact point length:20.9mm
  • Stylus:Carbide
  • Weight:222g
