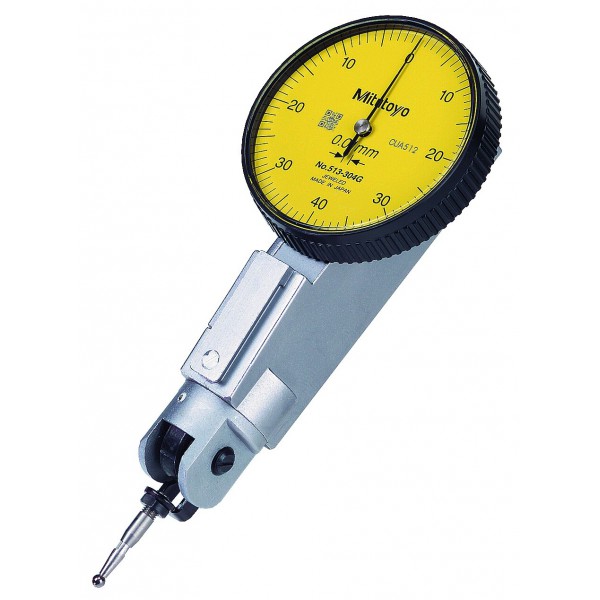

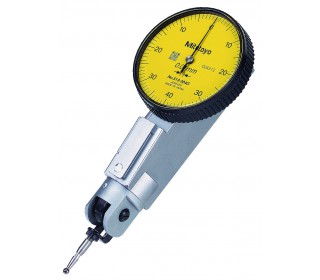

Universal Lever Indicator 0.8mm

Universal Lever Indicator 0.8mm

  • Type Lever
  • Dial Type Balanced
  • Range 0.8mm
  • Accuracy ±8µm
  • Graduation 0.01mm
  • Measuring Force 0.3N or less
  • Graduation 0-40-0
  • Remarks Jewelled bearing type



More details

513-304GE

Out of stock
  • No-clutch mechanism for automatic reversal of measuring direction.
  • Stylus can be rotated 360° without moving the indicator body so that the dial can be set in the ideal position for viewing.





  • Reference:513-304GE
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0.8mm
  • Accuracy:±8µm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Measuring force:≤0.3N
  • Ø Outer Frame:40mm
  • Scale:0-40-0
  • Range / Rev.:0.8mm
  • Contact point length:24mm
  • Stylus:Carbide
  • Weight:80g
