Articulated Magnetic Stand
Please note: non-contractual pictures

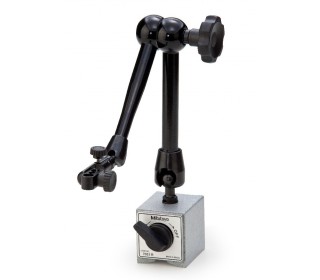

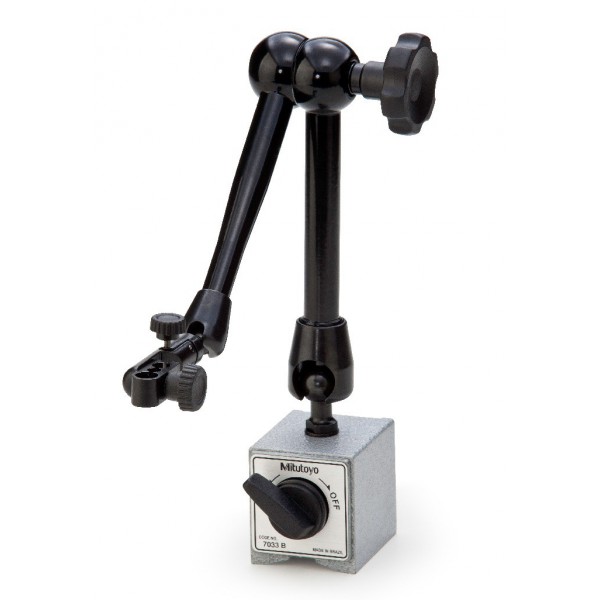

Articulated Magnetic Stand

Mitutoyo’s Magnetic Stands accept all dial indicators and dial test indicators (with stem Ø6 mm or Ø8 mm) and clamp to iron or steel surfaces with a strong magnetic force.
Action radius : 159 mm



More details

In stock
  • Permanent magnet operation with ON/OFF control.
  • V-grooved base for secure mounting on cylindrical surfaces.
  • Ideal for holding lever indicators (DTIs) at any orientation on a machine tool for alignment operations.



  • Reference:7031B
  • Brand:Mitutoyo
  • Hauteur:425 mm
  • Anvil dimensions:60 x 50 x 55 mm
  • Magnetic force:600N
  • Acceptable stem sizes: Ø6, Ø8, Ø3/8"
  • Action radius (mm):159
  • Base thread:M8 x 1.25
  • Weight:1540g
