Outside micrometer 50-75 mm
Please note: non-contractual pictures

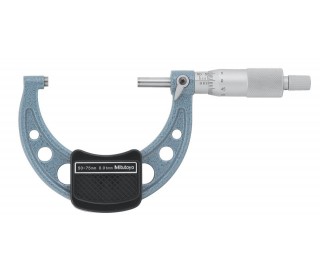

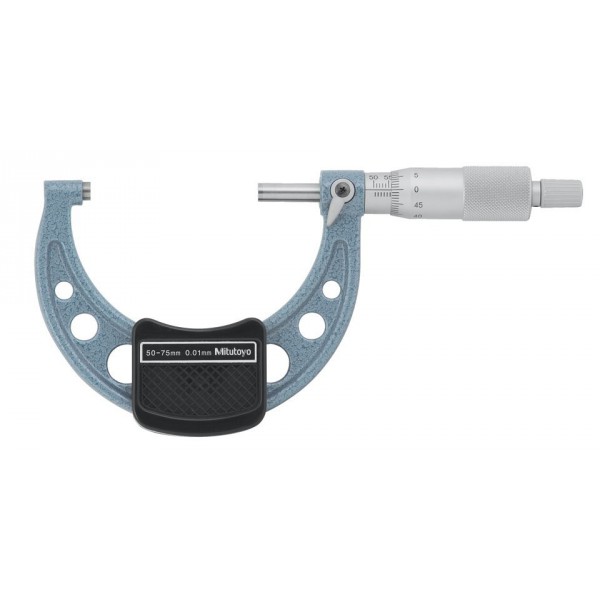

Outside micrometer 50-75 mm

50-75mm Outside Micrometer with ratchet stop. Supplied in fitted case with 50 mm standard bar.

More details

103-139-10

Out of stock

Hammertone-green, baked-enamelfinished frame. Ratchet Stop for exact repetitive readings.

  • Reference:103-139-10
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:50-75mm / 2-3"
  • Accuracy:±2µm / ±.0001"
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Flatness:0.6µm/.000024
  • Measuring force:5-10N
  • Parallelism:2µm / .00008"
  • Data output:No
  • Weight:315g
