Set of 4 Outside Micrometers 0-100mm with ratchet stop
Please note: non-contractual pictures

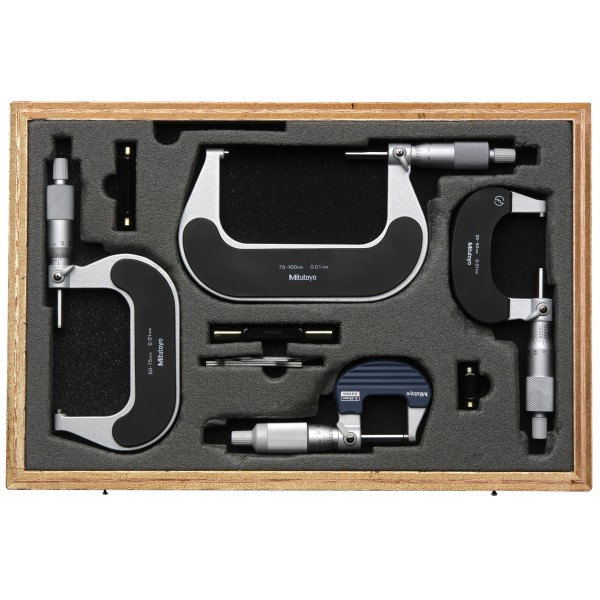

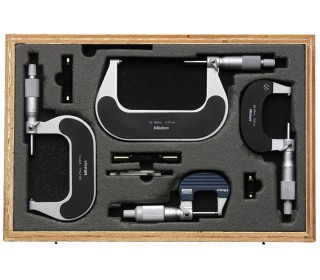

Set of 4 Outside Micrometers 0-100mm with ratchet stop

Including : 102-301, 102-302, 102-303, 102-304 and 3 standard bars (25mm, 50mm, 75mm).

More details

in stock

Heat-insulated frame, tapered (on the anvil side) for hard-to-reach places. With a standard bar except for 0-25mm A ratchet stop for a constant measuring force. Supplied in a fitted plastic case.

  • Reference:102-911-40
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-100mm/0-4"
  • Accuracy:±2µm / ±.0001"
  • Display type:Non-digital
  • Resolution:±2µm / ±.0001"
  • Flatness:0.6µm/.000024
  • Measuring force:5-10N
  • Parallelism:2µm / .00008"
  • Data output:No
  • Weight:1200gr
