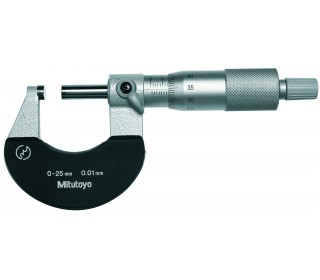

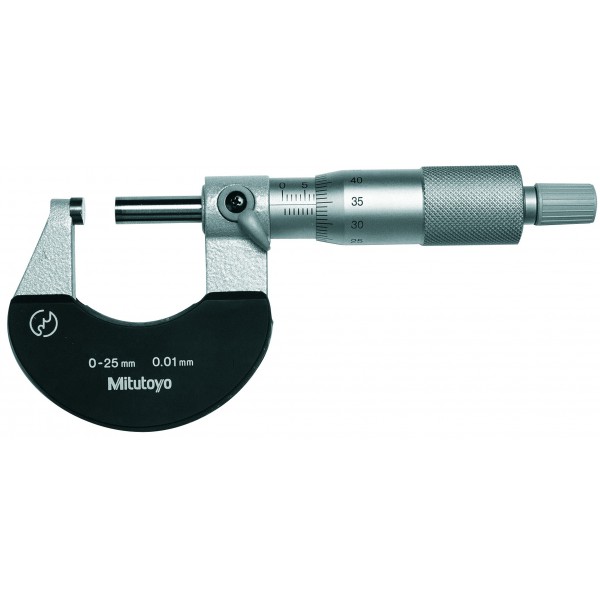

0/25mm Outside Micrometer with ratchet stop
Please note: non-contractual pictures

0/25mm Outside Micrometer with ratchet stop

Outside Micrometers 0/25mm with ratchet stop.

More details

In stock
  • Heat-insulated frame, tapered (on the anvil side) for hard-to-reach places.
  • With a standard bar except for 0-25mm
  • A ratchet stop for a constant measuring force.
  • Supplied in a fitted plastic case.
- See more at: http://ecatalog.mitutoyo.com/Outside-Micrometers-Series-102-C1095.aspx#sthash.sqxqNImB.dpuf

Heat-insulated frame, tapered (on the anvil side) for hard-to-reach places. With a standard bar except for 0-25mm A ratchet stop for a constant measuring force. Supplied in a fitted plastic case.

  • Reference:102-301
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-25 mm / 0-1 "
  • Accuracy:±2µm / ±.0001"
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Flatness:0.6µm/.000024
  • Measuring force:5-10N
  • Parallelism:2µm / .00008"
  • Data output:No
  • Weight:180gr
