Ratchet Thimble Micrometer 0/25mm with 0,01 mm resolution

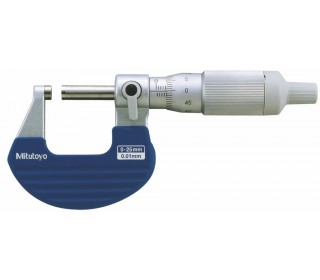

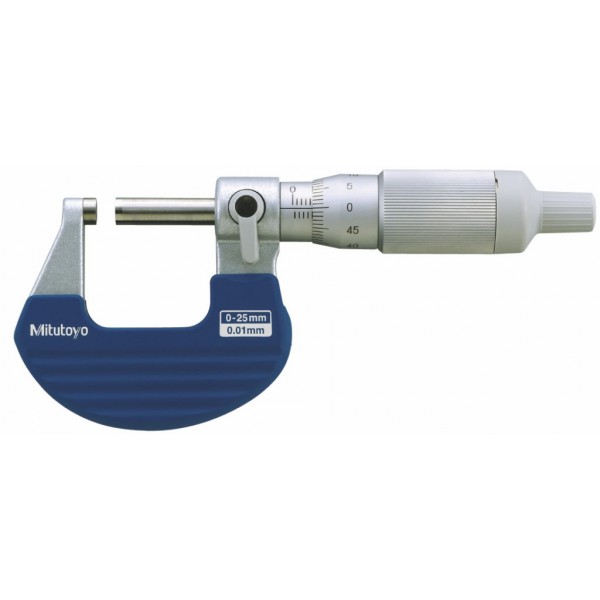

Please note: non-contractual pictures

Ratchet Thimble Micrometer 0/25mm with 0,01 mm resolution

Ratchet Thimble Micrometer 0/25mm.

More details

In stock

Ratchet function works both from the thimble and the speeder,allowing easy one-handed operation. Clearly audible ratchet operation for reassurance that measurement is being performed at constant,preset force. Provided with a Certificate of Inspection. With a standard bar except for 0-25mm and 0-1in models. Supplied in fitted case. Heat-Insulated frame.

  • Reference:102-701
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-25 mm / 0-1 "
  • Accuracy:±2µm / ±.0001"
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Flatness:0.6µm/.000024
  • Measuring force:5-10N
  • Parallelism:2µm / .00008"
  • Weight:180gr
