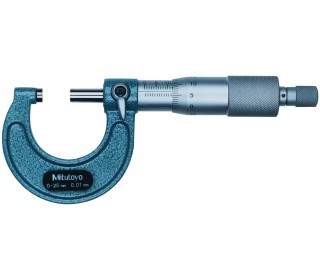

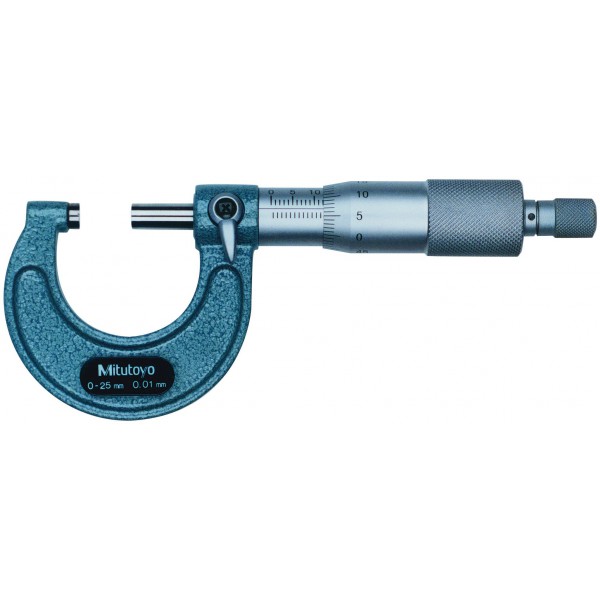

Outside micrometer 0-25 mm - 0,001 mm
0-25mm Outside Micrometer with ratchet stop. Supplied in fitted case.
Hammertone-green, baked-enamelfinished frame. Ratchet Stop for exact repetitive readings.
- Reference:103-129
- Brand:Mitutoyo
- Measurement Units:Millimetre
- Range:0-25 mm / 0-1 "
- Accuracy:±2µm / ±.0001"
- Display type:Non-digital
- Resolution:0.001mm
- Flatness:0.6µm/.000024
- Measuring force:5-10N
- Parallelism:2µm / .00008"
- Data output:No
- Weight:175g
