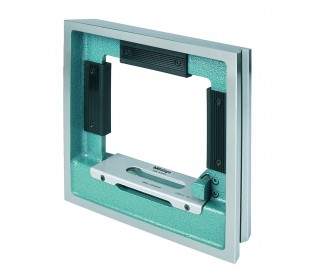

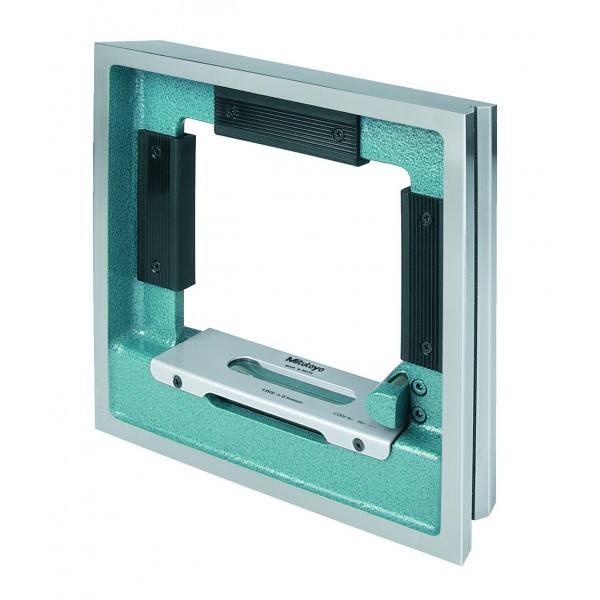

0,01 mm/m Precision level

0,01 mm/m Precision level

Size: 200 x 44 x 200 mm, Sensitivity 0.02mm/m or 4s, Accuracy of graduations 0,01 mm/m. flatness of measuring faces 3μm, Parallelism of measuring faces 10μm, Squareness of measuring faces 15μm

More details

In stock

• Intended for setting precision machine tools and instruments to be truly level.
• Flat measuring faces, precision ground with veeground base.
• Longitudinal and transverse bubble level.
• Adjustable for zero level.
• Can test surfaces for verticality as well as for horizontal level



  • Reference:960-703
  • Brand:Mitutoyo
  • Accuracy:0,01mm/m
  • Resolution:0.02mm/m
  • Flatness:5µm
  • Parallelism:10µm
  • Squareness:15µm
  • Weight:4000g
