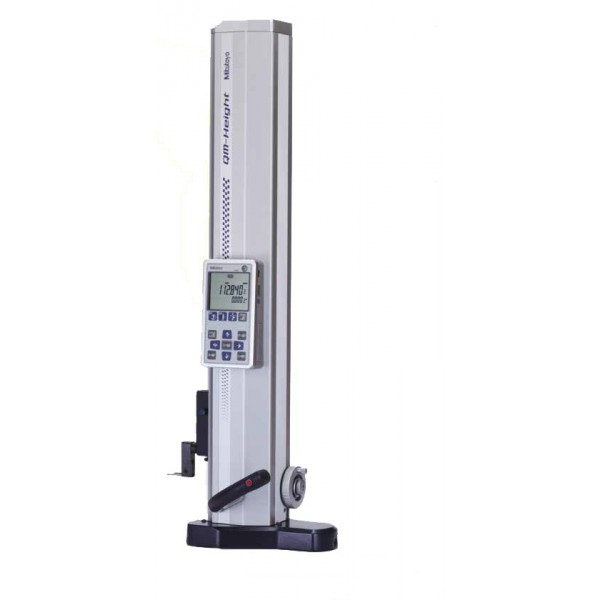

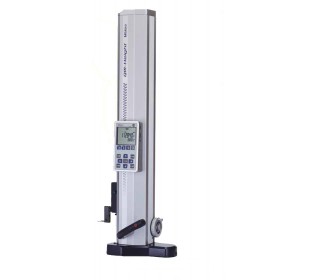

ABSOLUTE QM-Height Gauge 0-600/115-715¹ mm

ABSOLUTE QM-Height Gauge 0-600/115-715¹ mm

  • Range: 0-600mm / 0-14"
  • Accuracy: ±(2.4 + 2.1L/600)µm*
  • Resolution: 0.001 / 0.005mm
  • Repeatability: 1.8µm
  • Perpendicularity: 12µm
  • Guiding Method: Roller bearing
  • Display: LCD
  • Battery Life: Approx 260 hours (approx 6 hours when using backlights)
  • Data Output: Yes
  • Measuring Force: 1.5±0.5N
  • Power Supply: AC adapter (optional) / battery (LR6 x 4)
  • Remarks: With setting block for ball probe

More details

4 640,00 € Ht
5 568,00 € ttc

518-236

In stock
  • Newly developed high accuracy and high resolution ABSOLUTE linear encoder for position detection.
  • Easy reference icon keys.
  • Possible to measure inside/outside diameter via unique process (detect the circle apex and process by tracing measurement).
  • Various types of optional probes are available.
  • Large size LCD with back light.
  • GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
  • Slider elevation knob (for travel) / wheel (for measurement).
  • With USB output.


QM Height Dimensions

  • Reference:518-236
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:0-600/115-715*¹ mm
  • Accuracy:±(2.4 + 2.1 L/600) μm
  • Display type:Digital
  • Resolution:0,001/0,005 mm
  • Repeatability:1,8 μm (±2σ)
  • Measuring force:1,5 ± 0,5 N
  • Data output:Yes
  • Power supply:AC Adaptator (optional), battery (LR6 x 4)
  • Fine adjustment:Yes
  • Squareness:12 μm
  • Weight:30 kg
