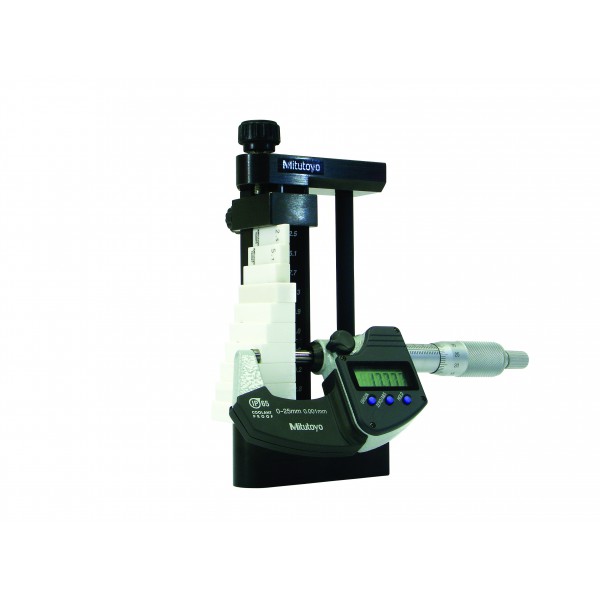

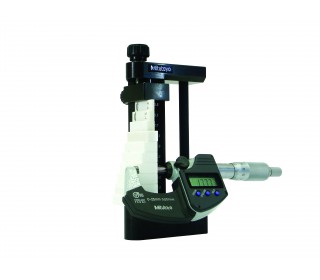

Gauge block holder
Applicable gage block set: 516-106-26, 516-107-26, 516-156-26, 516-157-26. Applicable gage block size (mm): 2.5, 5.1, 7.7, 10.3, 12.915, 17.6, 20.2, 22.8, 25
- Can be fixed a series of gage blocks to be used for micrometer inspection.
- Can be measured in both vertical and horizontal posture.
- Parallelism is measured by attaching the optical parallel (optional accessory) to the GB set.
- Can be measured in both vertical and horizontal posture.
- Parallelism is measured by attaching the optical parallel (optional accessory) to the GB set.
- Reference:516-607
- Brand:Mitutoyo
