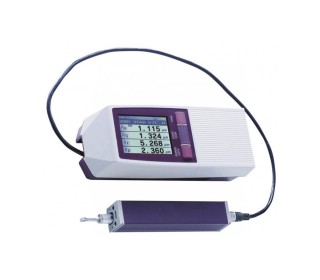

Surftest SJ-210 Portable Surface Roughness Tester
Please note: non-contractual pictures

Surftest SJ-210 Portable Surface Roughness Tester

  • Can be operated easily using the buttons on the front of the unit and under the sliding cover.
  • Up to 10 measurement conditions and one measured profile can be stored in the internal memory.
  • The display interface supports 16 languages, which can be freely switched.
  • The Surftest SJ-210 complies with the following standards: JIS,  VDA, ISO- 1997, and ANSI.

More details

In stock
  • Measuring range: 17.5mm
  • Measuring speed: 0.25, 0.5, 0.75mm/s 1mm/s (Returning)
  • Drive unit: Standard type
  • Detector range: 360µm (-200µm to +160µm)
  • Measuring Force: 4mN
  • Stylus tip radius: 5µm
  • External I/OUSB I/F. Digital output, Printer output, RS-232C I/F, Foot SW I/F
  • Power Supply: Two way power supply: battery (rechargeable Ni-MH battery) and AC adapter
  • Data storage: Memory card
  • Detector Conical taper angle: 60º


Check out the demo video here.

A free copy of Surftest SJ-201P, 210, 301, 310, 401, 402, 411, 412, 500, SV-2100 Communication program is offered, which enables easy use of the communication function to save and print measurement results. Download here

  • Reference:178-560-01D
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Display type:Digital
  • Data output:Yes
  • Power supply: AC adapter/100-240V rechargeable Ni-MH
