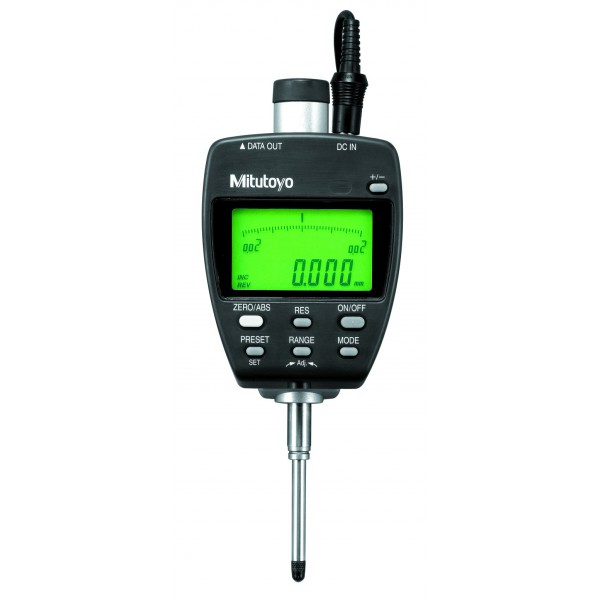

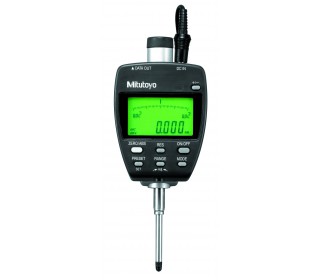

ABSOLUTE Digimatic Back-lit LCD Indicator ID-F 25mm
Please note: non-contractual pictures

ABSOLUTE Digimatic Back-lit LCD Indicator ID-F 25mm

Functions: Preset, Zeroset, GO/±NG judgement, Max/Min value hold, Runout, Resolution switching, Counting direction switching, Power ON/OFF, Data output, Inch/mm readout. Alarm: Counting value composition error, Overflow error, Tolerance limit setting error.



More details

In stock
  • With the ABSOLUTE linear encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off.
  • GO/±NG judgement is performed by setting upper and lower limits. if a judgement result shows an out of tolerance condition, the display backlighting changes from green to red, so tolerance judgement can be made at a glance.
  • The maximum, minimum, or runout value can be displayed during measurement.
  • An analog bar indicator is integrated so that visualizing the fall of measurements within limits is as easy as with a dial indicator. The display range of the analog bar can be set to suit the application.





  • Reference:543-551D
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:25.4mm
  • Accuracy:0.003mm
  • Display type:Digital
  • Resolution:0.001/0.01 mm
  • Measuring force:≤1.8N
  • Data output:Yes
  • Power supply:9V DC, 500 mA Power supply
  • Acceptable stem sizes:Ø8 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:240g
