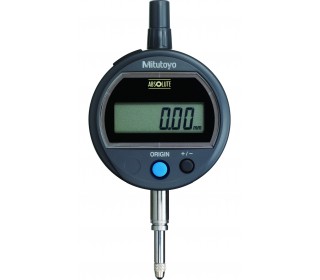

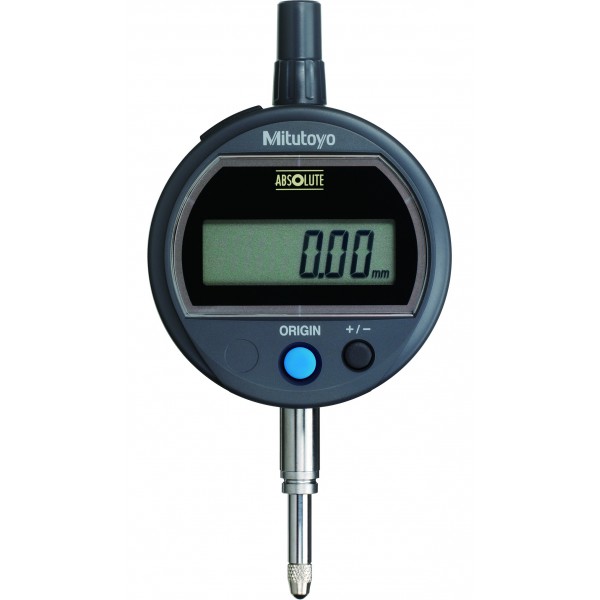

ABSOLUTE Digimatic ID-SS Solar Indicator 12.7mm

ABSOLUTE Digimatic ID-SS Solar Indicator 12.7mm

Range 12.7mm. Resolution 0.01mm. ORIGIN-set.  +/- direction. Data Output. Stem diameter 8mm. Measuring Force 1.5N or less. Remarks: with Flat back.

More details

151,00 € Ht
181,20 € ttc

543-505B

In stock

- Measurement tool with a solar power source. Ready for use from 40 lux illumination.
- Two large function buttons improve operability.
- Mitutoyo’s unique ABS (Absolute) sensor automatically restores the last origin position when the indicator is turned on. This allows quick-start operation, which is especially useful in multipoint measurement.
- A super capacitor maintains a reserve of approximately 4.0 hours under low light conditions.
- Origin-set, +/- direction.
- Character height: 9mm.
- SPC output provided.



  • Reference:543-505B
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:12.7mm
  • Accuracy:0,02mm
  • Display type:Digital
  • Resolution:0.01mm/.001"
  • Measuring force:≤1.5N
  • Data output:Yes
  • Protection:IP42
  • Power supply:Solar power source
  • Battery life:approx. 4 h
  • Ø Outer Frame:59mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:140g
