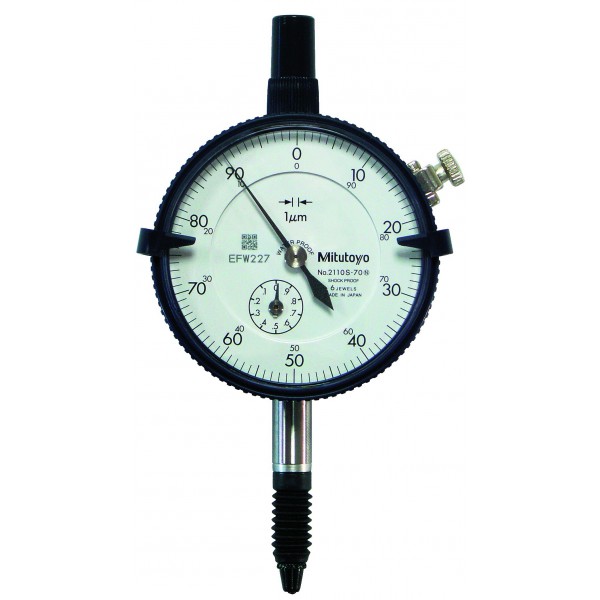

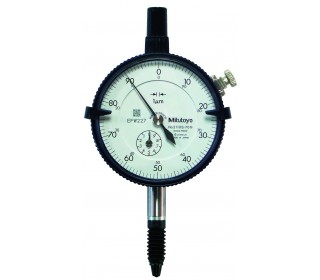

Standard Dial Indicator 1mm (0.1mm) flat back

Standard Dial Indicator 1mm (0.1mm) flat back

• Range 1mm (0.1mm)
• Accuracy
±5µm

• Graduation
0.001mm

• Repeatability
1µm

• Measuring Force
0.9-1.5N

• Graduation
0-100 (100-0)

• Shockproof
• IP64

• Flat Back



More details

In stock

• The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can easily be installed and removed without tools.
• Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• The spindle is made of high strength quench hardened stainless steel which resists arduous use.
• A carbide contact point is used.
• A special alloy is used for the sector gears to provide improved wear resistance.
• Application of a hard coating on the surface of the crystal makes the gauge highly scratch and chemical resistant.

  • Reference:2110SB-70
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:1mm
  • Accuracy:5 µm
  • Display type:Non-digital
  • Resolution: 0.001mm / .00005"
  • Repeatability:1 μm
  • Measuring force:0.9 - 2.0 N
  • Protection:IP64
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:57mm
  • Scale:0-100 (100-0)
  • Range / Rev.:0,1 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:140g
