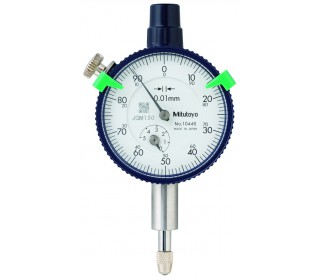

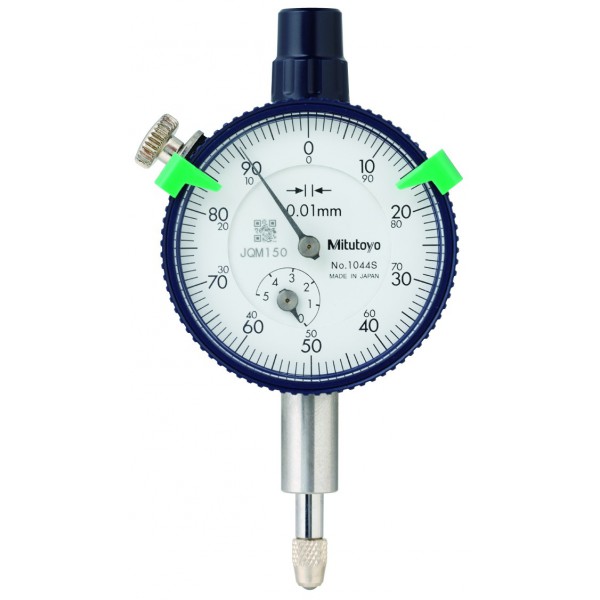

Compact Dial Indicator 5 mm (1mm) with flat back
Please note: non-contractual pictures

Compact Dial Indicator 5 mm (1mm) with flat back

• Range 5mm (1mm)
• Accuracy ±12µm
• Graduation 0.01mm
• Repeatability 3µm
• Measuring Force ≤1.4N
• Graduation 0-100 (100-0)
• Flat Back



More details

In stock
  • Small diameter model for applications where space is limited.
  • Hardened stainless steel plunger.





  • Reference:1044SB
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:5mm
  • Accuracy:12 μm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Repeatability:3 μm
  • Measuring force:≤1.4N
  • Protection:IP63
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:40mm
  • Scale:0-100 (100-0)
  • Range / Rev.:1 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:70g
