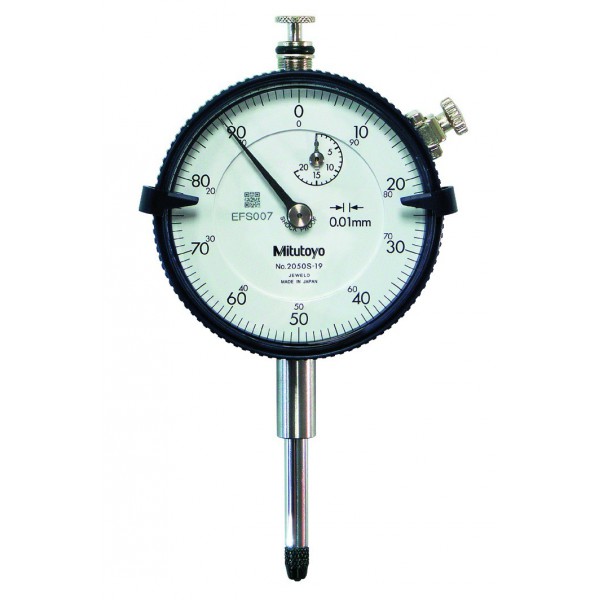

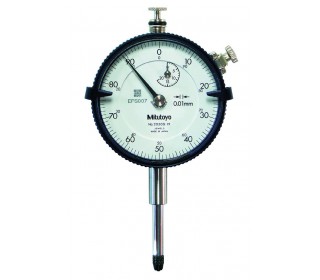

Dial Indicator 30mm (1mm) Shockproof Flat back
Please note: non-contractual pictures

Dial Indicator 30mm (1mm) Shockproof Flat back

• Range 30mm (1mm)
• Accuracy ±20µm
• Graduation 0.01mm
• Repeatability 3µm
• Measuring Force 0.4-2N
• Graduation 0-100 (100-0)
• Flat Back



More details

In stock

This reference is Shockproof.

  • Reference:2052SB-19
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:30mm
  • Accuracy:20 μm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Repeatability:3 μm
  • Measuring force:0.4 - 2.0 N
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:57mm
  • Scale:0-100 (100-0)
  • Range / Rev.:1 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:140g
