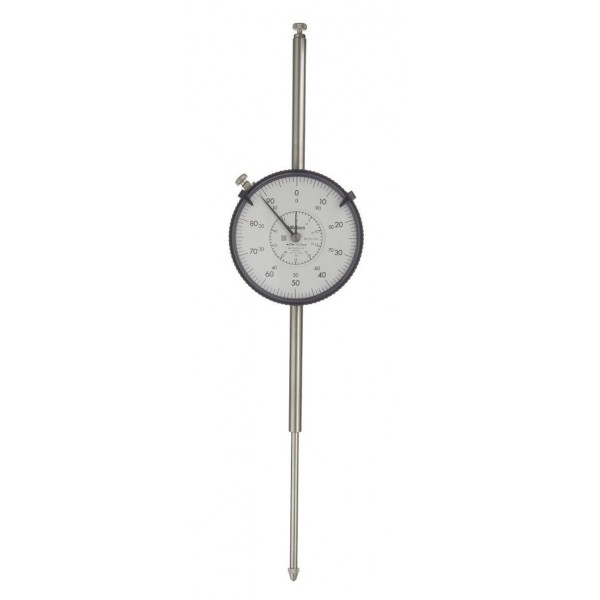

Long Stroke Large Diameter Dial Indicator 100mm (1mm) with flat back
Please note: non-contractual pictures

Long Stroke Large Diameter Dial Indicator 100mm (1mm) with flat back

 • Range 100mm (1mm)
 • Accuracy ±35µm
 • Graduation 0.01mm
 • Repeatability 3µm
 • Measuring Force ≤3.2N
 • Graduation 0-100
 • With Flat back, Shockproof type, Jewelled bearing type, with coaxial revolution counter.



More details

In stock

 • Dial gauge with a large-diameter dial face to ease reading.
 • Comes with limit pins and a bezel clamp as standar



  • Reference:3062SB-19
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:100mm
  • Accuracy:35 μm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Repeatability:3 μm
  • Measuring force:0.4 - 3.2 N
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:78mm
  • Scale:0-100 (100-0)
  • Range / Rev.:1 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:317g
