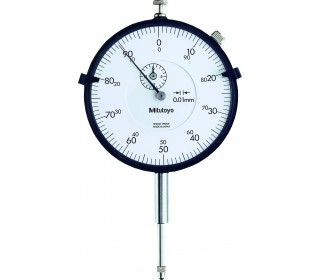

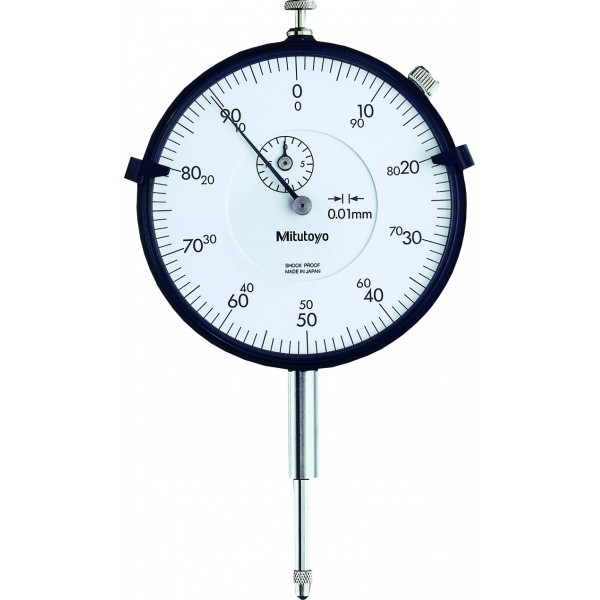

Large Diameter Dial Indicator 20mm (1mm) with flat back
Please note: non-contractual pictures

Large Diameter Dial Indicator 20mm (1mm) with flat back

 • Range 20mm (1mm)
 • Accuracy ±20µm
 • Graduation 0.01mm
 • Repeatability 5µm
 • Measuring Force ≤2.0N
 • Graduation 0-100
 • With flat back



More details

In stock

 • Dial gauge with a large-diameter dial face to ease reading.
 • Comes with limit pins and a bezel clamp as standard.



  • Reference:3050SB
  • Brand:Mitutoyo
  • Measurement Units:Millimetre
  • Range:20mm
  • Accuracy:18 μm
  • Display type:Non-digital
  • Resolution:0.01mm/.001"
  • Repeatability:3 μm
  • Acceptable stem sizes:Ø8 mm
  • Ø Outer Frame:78mm
  • Range / Rev.:1 mm
  • Stylus:Carbide
  • Flat:Flat
  • Weight:257g
