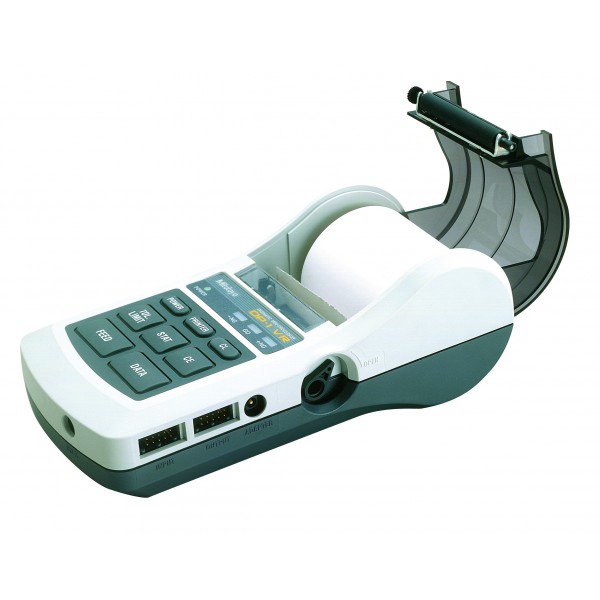

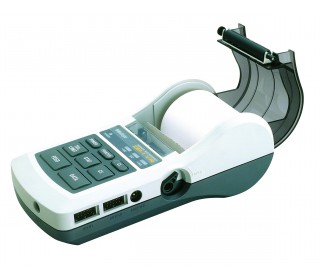

DP-1VR Digimatic Mini-Processor

Mitutoyo’s DP-1VR is so compact it fits right in your palm. But with this powerful little device you can print data from calipers, micrometers and any other measuring devices equipped with a Digimatic port, and even perform statistical evaluations.
The DP-1VR even lets you transmit the data to a computer using an RS-232C connecting cable.

More details

In stock

Caractéristiques

See "Data sheet" for more details.

Reference:264-504-50
Brand:Mitutoyo
Data output:Yes
Power supply:AC adapter 6V Electric battery: LR6 (alkaline), Ni-Mh (AA size) Battery life: 10 years (clock battery), 10000 lines (1600mA 1time/5 sec. using the nickel hydrofluoric battery)
Printing method:Thermal line printer
Printing dot:384dot (8dot/mm)
Printing speed:6.5mm/s (using AC adapter)
Printing paper:48 m
Printing line:Approx. 6500 lines for large characters, Approx. 12000 lines for normal characters
Processing capacity:9999 data (mode 1/2/3) / 100000 data (mode 0)
Printing data:Measurement data, GO/±NG judgment, No. of data, Max/min value, Range, Average, Standard deviation, No. of defective, Fraction defective...
Output function:Output the measuring data (RS232C) or GO/±NG judgment
Input timer:0.25s, 1s, 5s, 30s, 1min, 30min, 60min
Weight:390g
