Please note: non-contractual pictures

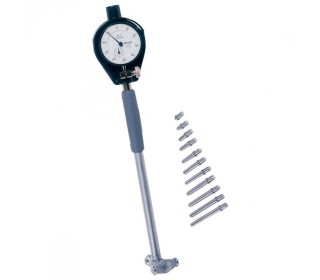

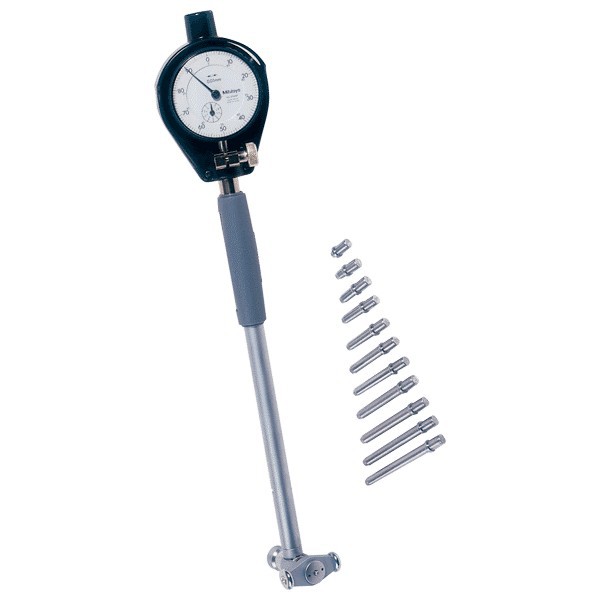

Dial Bore gauge 18-35 mm - standard type
Accuracy: 5µm, Indication stability: 2µm, Graduation: 0.01mm, with 2046SB dial indicator.
- Most popular Bore Gauges.
- Carbide-tipped contact points for durability.
- The dial indicator is fully protected by a rugged cover.
- Optional extension rods can be attached for measuring deep holes.
- Reference:511-711
- Brand:Mitutoyo
- Measurement Units:Millimetre
- Range:18-35 mm
- Accuracy:2µm / .0001"
- Display type:Non-digital
- Resolution:0.01mm/.001"
- Repeatability:0.5µm
- Delivered with:2046SB
- Weight:330g
